AD5429YRUZ - Analog Devices

Description: AD5429YRUZ, 8-Bit 8 Bit DAC Dual, 2.47Msps, SPI, Microwire, 16-Pin TSSOP

Download AD5429YRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

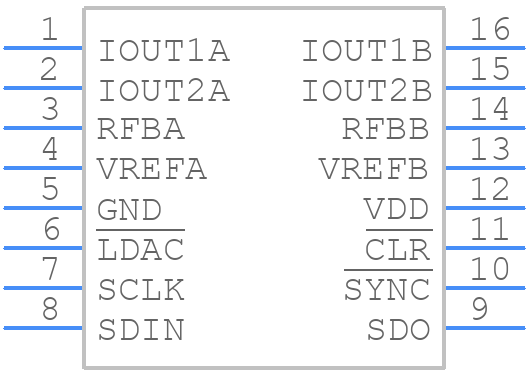

AD5429YRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5429YRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD5429YRUZ - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD5429YRUZ Details

  • Manufacturer Part Number:

    AD5429YRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    2.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.1953%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    0.12 µs

  • Settling Time-Nom (tstl):

    0.08 µs

  • Supply Current-Max:

    0.01 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5429YRUZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the input and output traces short and away from each other. Also, use a low-ESR capacitor for the AVDD and DVDD pins.
  • To ensure accuracy, use a high-precision voltage reference, such as the ADR4520, and ensure that the input voltage is within the specified range. Also, calibrate the device during production to account for any manufacturing variations.
  • The maximum output current of the AD5429YRUZ is 10mA. If the output current exceeds this limit, the output voltage may droop or become unstable. To avoid this, use a buffer amplifier or an external current booster if high output currents are required.
  • The AD5429YRUZ has a 16-bit parallel interface. To interface with a microcontroller or FPGA, use a 16-bit bus to connect the device to the microcontroller or FPGA. Ensure that the interface signals are properly buffered and terminated to prevent signal degradation.
  • The AD5429YRUZ has a power-on reset feature that initializes the device to a default state. During power-on, the output voltage may glitch or oscillate briefly before settling to the programmed value. To avoid this, use an external reset circuit or a power sequencing scheme to ensure a clean power-on reset.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5429YRUZ Overview

Use the download button to access the AD5429YRUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD542, or try a keyword search, such as Digital to Analog Converters
