AD5433YRUZ - Analog Devices

Description: AD5433YRUZ, 10-Bit 10 Bit DAC 20.4Msps, Parallel, 20-Pin TSSOP

Download AD5433YRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

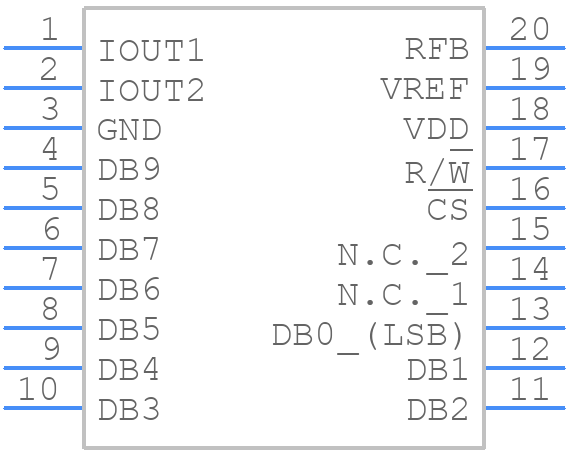

AD5433YRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5433YRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-20 (TSSOP)
click to zoom
3D Models
AD5433YRUZ - Analog Devices - 3D model - Small Outline Packages - RU-20 (TSSOP)
click to zoom

AD5433YRUZ Details

  • Manufacturer Part Number:

    AD5433YRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AC, TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    0.12 µs

  • Settling Time-Nom (tstl):

    0.03 µs

  • Supply Current-Max:

    0.005 mA

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AD5433YRUZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star-grounding configuration to minimize noise and ensure a clean power supply.
  • Ensure good airflow around the device, and consider using a heat sink if the device is expected to operate in high-temperature environments. Also, follow proper thermal design and layout guidelines to minimize thermal resistance.
  • Power up the device in the following sequence: AVCC, DVCC, and then the analog input voltage. This ensures proper internal biasing and prevents latch-up or damage to the device.
  • Use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the input lines to reduce EMI. Also, ensure good PCB layout practices, such as keeping analog and digital traces separate.
  • Follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the offset and gain to achieve the desired output. Use a high-precision voltage source and a multimeter to ensure accurate calibration.
