AD5443YRMZ-REEL7 - Analog Devices

Description: 12-Bit High Bandwidth Multiplying DAC's with Serial Interface

Download AD5443YRMZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

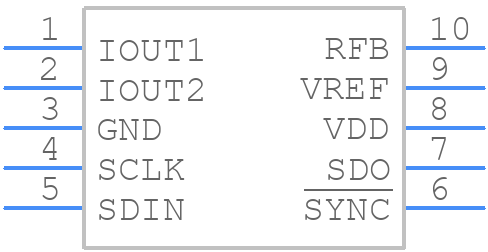

Symbol
AD5443YRMZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5443YRMZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead Mini Small Outline Package [MSOP] (RM-10)
click to zoom
3D Models
AD5443YRMZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - 10-Lead Mini Small Outline Package [MSOP] (RM-10)
click to zoom

AD5443YRMZ-REEL7 Details

  • Manufacturer Part Number:

    AD5443YRMZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    3 X 5 MM, ROHS COMPLIANT, MO-187BA, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5 V

  • Analog Output Voltage-Min:

    0.4 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    0.16 µs

  • Settling Time-Nom (tstl):

    0.09 µs

  • Supply Current-Max:

    0.005 mA

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD5443YRMZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5443YRMZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connecting the device to the power supply and output loads. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane to reduce noise and improve performance.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the offset and gain trim bits to achieve the desired output voltage. Additionally, consider using the AD5443YRMZ-REEL7's built-in self-calibration feature, which can simplify the calibration process.
  • The AD5443YRMZ-REEL7 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as using a thermal pad or heat sink, and to keep the device away from heat sources. Additionally, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
  • To minimize EMI and ensure EMC, use proper shielding, grounding, and filtering techniques. Keep the AD5443YRMZ-REEL7 away from high-frequency sources, use a shielded enclosure, and consider using EMI filters or common-mode chokes to reduce emissions and susceptibility.
  • The AD5443YRMZ-REEL7 is a high-reliability device with a mean time between failures (MTBF) of over 1 million hours. To ensure quality and reliability, follow proper handling and storage procedures, use a clean and controlled manufacturing environment, and consider using a burn-in or environmental stress screening process to detect early failures.
