AD5447YRUZ-REEL7 - Analog Devices

Description: Dual 12-Bit, High Bandwidth Multiplying DACs with Parallel Interface

Download AD5447YRUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

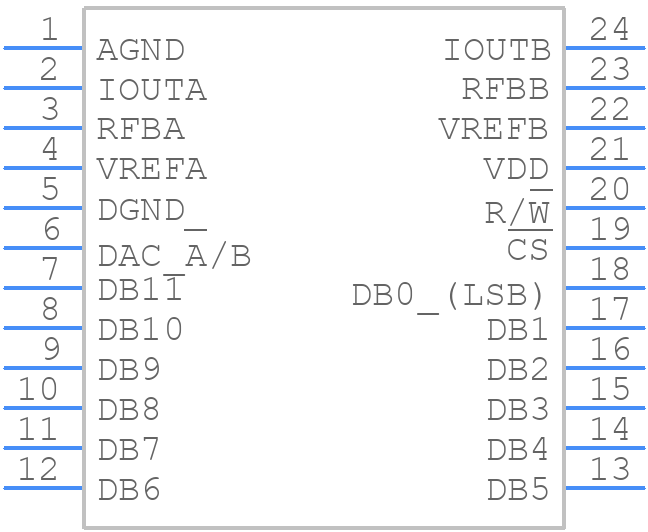

AD5447YRUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5447YRUZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-24 (TSSOP)
click to zoom
3D Models
AD5447YRUZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RU-24 (TSSOP)
click to zoom

AD5447YRUZ-REEL7 Details

  • Manufacturer Part Number:

    AD5447YRUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    24

  • Manufacturer Package Code:

    RU-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5 V

  • Analog Output Voltage-Min:

    0.4 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    0.03 µs

  • Settling Time-Nom (tstl):

    0.08 µs

  • Supply Current-Max:

    0.01 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AD5447YRUZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5447YRUZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it's recommended to place the device close to the analog signal sources and to use a low-ESR capacitor for power supply decoupling.
  • To ensure the accuracy of the AD5447YRUZ-REEL7's output voltage, it's essential to use a high-precision voltage reference, such as the ADR421 or ADR452, and to minimize the noise on the power supply lines. Additionally, the output voltage should be filtered using a low-pass filter to reduce noise and ripple.
  • The maximum output current of the AD5447YRUZ-REEL7 is 10 mA. However, it's recommended to limit the output current to 5 mA or less to ensure the device operates within its specified temperature range and to prevent overheating.
  • The AD5447YRUZ-REEL7's output voltage can be programmed using a microcontroller by sending a 16-bit serial data word to the device's input registers. The data word should be formatted according to the device's datasheet, and the microcontroller should use a compatible serial communication protocol, such as SPI or I2C.
  • The AD5447YRUZ-REEL7 has a power-on reset (POR) circuit that initializes the device's output voltage to 0 V when the power supply is turned on. The POR circuit ensures that the device's output voltage is in a known state after power-up, which is essential for many applications.
