AD5451YUJZ-REEL7 - Analog Devices

Description: ANALOG DEVICES - AD5451YUJZ-REEL7 - Digital to Analogue Converter, 10 bit, 2.7 MSPS, SPI, 2.5V to 5.5V, TSOT, 8 Pins

Download AD5451YUJZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

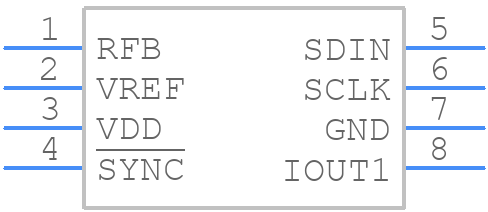

Symbol
AD5451YUJZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5451YUJZ-REEL7 - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - UJ-8 (TSOT)
click to zoom
3D Models
AD5451YUJZ-REEL7 - Analog Devices - 3D model - SOT23 (8-Pin) - UJ-8 (TSOT)
click to zoom

AD5451YUJZ-REEL7 Details

  • Manufacturer Part Number:

    AD5451YUJZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSOT-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    UJ-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Settling Time-Max:

    0.11 µs

  • Settling Time-Nom (tstl):

    0.016 µs

  • Supply Current-Max:

    0.01 mA

  • Supply Voltage-Nom:

    3.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

AD5451YUJZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5451YUJZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the offset and gain registers accordingly. It's also important to ensure that the device is operated within its specified temperature range and that the input signals are within the recommended range.
  • The AD5451YUJZ-REEL7 is specified to operate from -40°C to 125°C, but its performance may degrade at higher temperatures. At high temperatures, the device's offset voltage and gain error may increase, affecting its overall accuracy. It's essential to consider the temperature range of the application and ensure that the device is properly heat-sinked if necessary.
  • The AD5451YUJZ-REEL7 has a serial interface that can be easily interfaced with a microcontroller or FPGA. The device uses a standard SPI interface, and the datasheet provides detailed information on the communication protocol and timing diagrams. Ensure that the microcontroller or FPGA is configured to match the AD5451YUJZ-REEL7's clock frequency and data format.
  • The AD5451YUJZ-REEL7 has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Ensure that the device is handled in an ESD-controlled environment, and use ESD-protective packaging and materials to prevent damage.
