AD5452YRMZ-REEL7 - Analog Devices

Description: Digital to Analog Converters - DAC 12-bit Serial Iout DAC

Download AD5452YRMZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

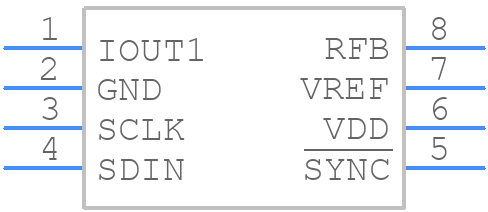

AD5452YRMZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5452YRMZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RM-8)
click to zoom
3D Models
AD5452YRMZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - (RM-8)
click to zoom

AD5452YRMZ-REEL7 Details

  • Manufacturer Part Number:

    AD5452YRMZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    0.11 µs

  • Settling Time-Nom (tstl):

    0.016 µs

  • Supply Current-Max:

    0.01 mA

  • Supply Voltage-Nom:

    3.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD5452YRMZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5452YRMZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure accurate calibration, it is recommended to use a high-precision voltage reference, such as the ADR421, and to follow the calibration procedure outlined in the datasheet. Additionally, the calibration process should be performed in a temperature-controlled environment to minimize thermal drift.
  • The recommended power-up sequence for the AD5452YRMZ-REEL7 is to first apply the analog supply voltage (VCC) and then the digital supply voltage (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent latch-up and ensures proper operation.
  • To minimize EMI when using the AD5452YRMZ-REEL7, it is recommended to use a shielded enclosure, keep the analog and digital circuits separate, and use EMI filters on the input and output lines. Additionally, the PCB should be designed to minimize radiation and the device should be placed away from sources of EMI.
  • The recommended operating temperature range for the AD5452YRMZ-REEL7 is -40°C to +125°C. However, the device can operate over a wider temperature range, but the accuracy and linearity may be affected.
