Technical Content
Part Image

AD5452YRMZ - Analog Devices

Description: AD5452YRMZ, 12-Bit 12 Bit DAC 2.7Msps, SPI, Microwire, 8-Pin MSOP

Download AD5452YRMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

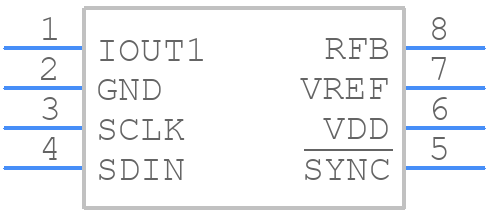

AD5452YRMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5452YRMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead MSOP
click to zoom
3D Models
AD5452YRMZ - Analog Devices - 3D model - Small Outline Packages - 8-Lead MSOP
click to zoom

AD5452YRMZ Details

  • Manufacturer Part Number:

    AD5452YRMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    0.11 µs

  • Settling Time-Nom (tstl):

    0.016 µs

  • Supply Current-Max:

    0.01 mA

  • Supply Voltage-Nom:

    3.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD5452YRMZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the input and output traces short and away from each other. Additionally, use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the AVCC pin.
  • The AD5452YRMZ has an internal calibration circuit that can be enabled by setting the CAL pin high. The device will then perform a self-calibration sequence. It's recommended to perform calibration after power-up and after any changes to the input range or gain settings.
  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the digital supply (DVCC). The power-down sequence should be reversed. This ensures that the internal voltage regulators are powered up and down correctly.
  • The AD5452YRMZ outputs data in a 16-bit, 2's complement format. The output data should be processed as a signed integer, taking into account the gain and offset settings. The datasheet provides a detailed explanation of the output data format and how to process it correctly.
  • The AD5452YRMZ has a maximum junction temperature of 150°C. Ensure good thermal conductivity between the device and the PCB, and provide adequate airflow or heat sinking to prevent overheating. The device's thermal performance can be monitored using the internal temperature sensor.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5452YRMZ Overview

Use the download button to access the AD5452YRMZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD545, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
