AD5452YUJZ-REEL7 - Analog Devices

Description: ANALOG DEVICES - AD5452YUJZ-REEL7 - Digital to Analogue Converter, 12 bit, 2.7 MSPS, Microwire, QSPI, Serial, SPI, 2.5V to 5.5V, TSOT

Download AD5452YUJZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

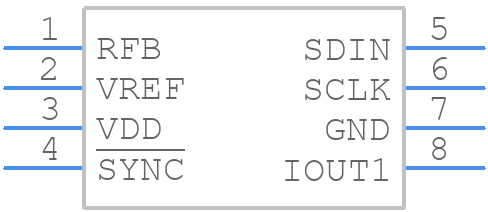

AD5452YUJZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5452YUJZ-REEL7 - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - UJ-8 (TSOT)
click to zoom
3D Models
AD5452YUJZ-REEL7 - Analog Devices - 3D model - SOT23 (8-Pin) - UJ-8 (TSOT)
click to zoom

AD5452YUJZ-REEL7 Details

  • Manufacturer Part Number:

    AD5452YUJZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSOT-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    UJ-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Settling Time-Max:

    0.11 µs

  • Settling Time-Nom (tstl):

    0.016 µs

  • Supply Current-Max:

    0.01 mA

  • Supply Voltage-Nom:

    3.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

AD5452YUJZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5452YUJZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the offset and gain trim pins accordingly. It's also important to ensure the device is operated within its specified temperature range and power supply voltage.
  • The recommended power-up sequence for the AD5452YUJZ-REEL7 is to first apply the analog power supply (VCC), followed by the digital power supply (VDD), and finally the clock signal. This ensures that the device powers up correctly and prevents damage or incorrect operation.
  • To handle the digital output data from the AD5452YUJZ-REEL7, use a digital interface such as SPI or I2C, and ensure that the receiving device is properly synchronized with the AD5452YUJZ-REEL7's clock signal. Additionally, implement error detection and correction mechanisms, such as CRC or checksum, to ensure data integrity.
  • To prevent overheating and ensure reliability, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. Additionally, follow the recommended operating temperature range and power dissipation guidelines outlined in the datasheet.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5452YUJZ-REEL7 Overview

Use the download button to access the AD5452YUJZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD545, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
