- Stock & Prices $ Price & Stock for AD5453YRMZ
- Part Number AD5453YRMZ
- Manufacturer Analog Devices
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - (RM-8)
- Released Date Apr 13, 2015
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD5453YRMZ Details
-
Manufacturer Part Number:
AD5453YRMZ
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
TSSOP
-
Package Description:
MSOP-8
-
Pin Count:
8
-
Manufacturer Package Code:
RM-8
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
AD5453YRMZ Frequently Asked Questions (FAQs)
-
A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, keep the input and output traces short and away from each other to minimize crosstalk.
-
The AD5453YRMZ has an internal calibration circuit that calibrates the device during power-up. However, if external calibration is required, it can be done by applying a known input voltage and adjusting the offset and gain trim pins to achieve the desired output.
-
The AD5453YRMZ has a maximum junction temperature of 150°C. Ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. Also, ensure the device is operated within the recommended temperature range of -40°C to 125°C.
-
Use a good PCB layout practice, use shielding, and add EMI filters such as ferrite beads or common-mode chokes to minimize EMI and RFI susceptibility. Also, ensure the device is operated in a shielded environment and use twisted pair cables for signal transmission.
-
Use a good power supply decoupling practice, such as using ceramic capacitors and ferrite beads to filter the power supply. Also, use a low-ESR capacitor to filter the analog power supply and a separate capacitor to filter the digital power supply.
Trust Checks
Community Provided
System Verified
Community Approved
AD5453YRMZ Overview

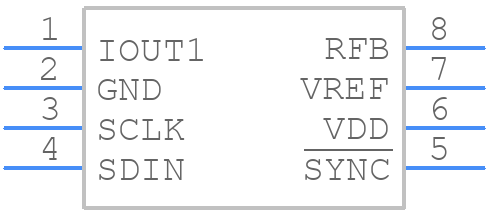

Use the download button to access the AD5453YRMZ schematic symbol, PCB footprint, and 3D model.
