AD5501BRUZ - Analog Devices

Description: Analog Devices AD5501BRUZ, 12 bit Serial DAC, 16-Pin TSSOP

Download AD5501BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

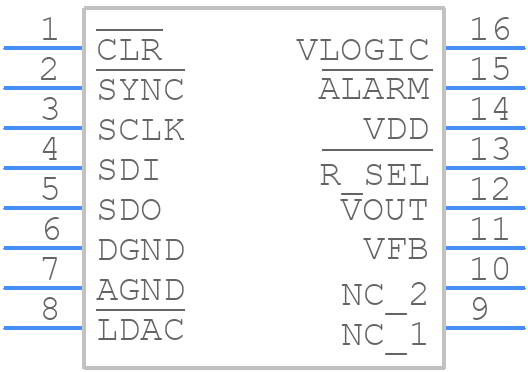

AD5501BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5501BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD5501BRUZ - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD5501BRUZ Details

  • Manufacturer Part Number:

    AD5501BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    61.5 V

  • Analog Output Voltage-Min:

    0.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    55 µs

  • Settling Time-Nom (tstl):

    25 µs

  • Supply Current-Max:

    0.75 mA

  • Supply Voltage-Nom:

    30 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AD5501BRUZ Frequently Asked Questions (FAQs)

  • The AD5501BRUZ is a high-frequency device, so it's essential to follow good high-frequency PCB design practices. Keep the signal paths short, use a solid ground plane, and avoid vias under the device. Place the decoupling capacitors close to the device, and use a low-ESR capacitor for the VDD pin.
  • To ensure accuracy, use a high-precision reference voltage, and make sure the input voltage is within the specified range. Also, consider the temperature coefficient of the device and the output voltage, and use a low-temperature-coefficient capacitor for the output filter.
  • The maximum output current of the AD5501BRUZ is not explicitly stated in the datasheet, but it's typically limited by the internal power dissipation. As a general rule, keep the output current below 10mA to ensure reliable operation.
  • The AD5501BRUZ is rated for operation up to 125°C, but the device's performance and accuracy may degrade at high temperatures. Consider the device's temperature coefficient and the application's requirements before using it in a high-temperature environment.
  • Start by checking the power supply voltage, input voltage, and output voltage. Verify that the device is properly connected and that the input and output capacitors are correctly sized. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines.
