AD5522JSVDZ - Analog Devices

Description: Parametric Measurement Unit 16bit 80-Pin TQFP EP Tray

Download AD5522JSVDZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD5522JSVDZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

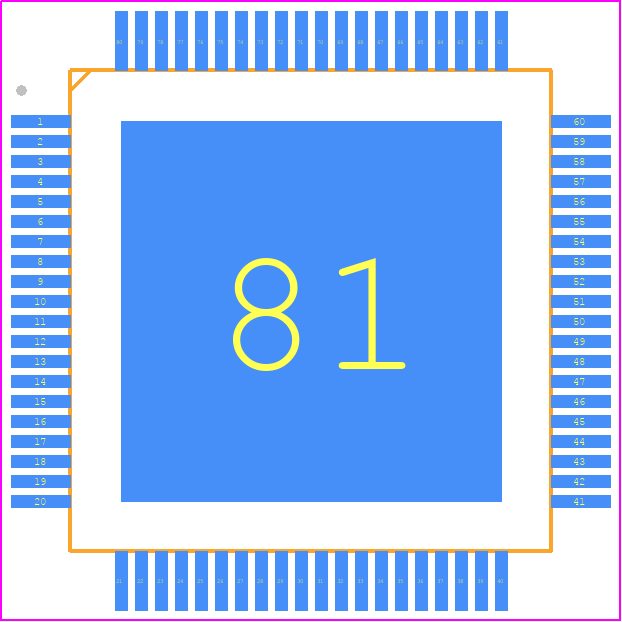

AD5522JSVDZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - SV-80-3
click to zoom
3D Models
AD5522JSVDZ - Analog Devices - 3D model - Quad Flat Packages - SV-80-3
click to zoom

AD5522JSVDZ Details

  • Manufacturer Part Number:

    AD5522JSVDZ

  • Source Url Status Check Date:

    2013-05-01 14:56:13.076

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    TQFP-80

  • Pin Count:

    80

  • Manufacturer Package Code:

    SV-80-3

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQFP-G80

  • JESD-609 Code:

    e3

  • Length:

    12 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -23 V

  • Neg Supply Voltage-Min (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    80

  • Operating Temperature-Max:

    90 °C

  • Operating Temperature-Min:

    25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP80,.55SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    36 mA

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    10 V

  • Supply Voltage-Nom (Vsup):

    20 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    12 mm

AD5522JSVDZ Frequently Asked Questions (FAQs)

  • It is recommended to follow a star-grounding scheme, keeping the analog and digital grounds separate, and using a solid ground plane to minimize noise. Place the AD5522JSVDZ close to the analog signal sources and keep the digital lines away from the analog lines.
  • The AD5522JSVDZ has an internal calibration circuit. To ensure proper calibration, follow the recommended calibration procedure outlined in the datasheet, which involves applying a specific voltage sequence to the CAL pin. Additionally, ensure the device is operated within the recommended temperature range.
  • The AD5522JSVDZ has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device in high-temperature environments. Monitor the device's temperature using the internal temperature sensor or an external thermometer.
  • The AD5522JSVDZ has a built-in POR and BOR circuitry. To handle these features, ensure a stable power supply, use a capacitor to filter the power supply, and add a reset circuit to handle the POR and BOR signals. Consult the datasheet for specific guidelines and timing diagrams.
  • To minimize EMI and RFI, use a shielded enclosure, keep the AD5522JSVDZ away from high-frequency sources, use a common-mode choke or ferrite bead on the power supply lines, and ensure good grounding practices. Follow the recommended PCB layout guidelines and use EMI-absorbing materials if necessary.
