- Part Number AD5535ABCZ
- Manufacturer Analog Devices
- Pin Count 124
- Part Category Integrated Circuit
- Package Category BGA
- Footprint Name BGA - BC-124-2
- Released Date Dec 17, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD5535ABCZ Details
-
Manufacturer Part Number:
AD5535ABCZ
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
BGA
-
Package Description:
15 X 15 MM, LEAD FREE, MO-192AAE-1, CSPBGA-124
-
Pin Count:
124
-
Manufacturer Package Code:
BC-124-2
-
HTS Code:
8542.39.00.40
-
Manufacturer:
Analog Devices Inc
AD5535ABCZ Frequently Asked Questions (FAQs)
-
A good layout and routing practice for the AD5535ABCZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. It's also recommended to place the device close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) to reduce noise and interference.
-
The AD5535ABCZ requires a calibration process to ensure accurate voltage output. This involves applying a known input voltage and adjusting the internal DAC registers to achieve the desired output voltage. The calibration process can be done using the device's internal calibration registers or through an external calibration routine using a microcontroller or other external device.
-
The maximum output current of the AD5535ABCZ is 10 mA. Exceeding this current limit can cause the device to overheat, leading to reduced accuracy and reliability. It's essential to ensure that the output current is within the specified limit to maintain optimal performance and prevent device damage.
-
The AD5535ABCZ has built-in overvoltage and undervoltage protection mechanisms. The device can withstand overvoltage conditions up to 15 V and undervoltage conditions down to -0.3 V without damage. Additionally, the device has a power-on reset (POR) circuit that ensures the device is in a known state during power-up and power-down sequences.
-
The typical settling time of the AD5535ABCZ is 10 μs. This settling time can affect the device's performance in high-speed applications, such as in audio or video signal processing. To ensure optimal performance, it's essential to consider the settling time when designing the system and to use proper filtering and signal conditioning techniques.
Trust Checks
Community Provided
System Verified
Community Approved
AD5535ABCZ Overview

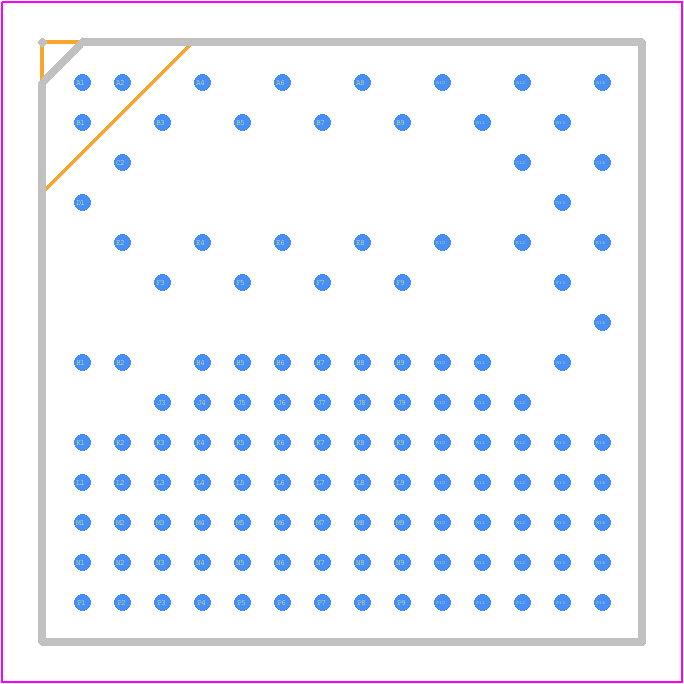

Use the download button to access the AD5535ABCZ schematic symbol, PCB footprint, and 3D model.
