AD5541CRZ-REEL7 - Analog Devices

Description: 2.7 V to 5.5 V, Serial-Input, Voltage-Output, 16-Bit DAC

Download AD5541CRZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

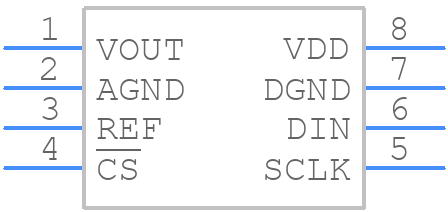

AD5541CRZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5541CRZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD5541CRZ-REEL7aaa
click to zoom
3D Models
AD5541CRZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - AD5541CRZ-REEL7aaa
click to zoom

AD5541CRZ-REEL7 Details

  • Manufacturer Part Number:

    AD5541CRZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    4.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Nom (tstl):

    1 µs

  • Supply Current-Max:

    0.15 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD5541CRZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5541CRZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the offset and gain trim pins accordingly. It's also recommended to use a high-precision voltage reference and to calibrate the device in the same environmental conditions as the final application.
  • The recommended power-up sequence for the AD5541CRZ-REEL7 is to first apply the analog supply voltage (VCC), followed by the digital supply voltage (VDD), and finally the clock signal. This sequence helps prevent damage to the device and ensures proper operation.
  • To handle the digital output data from the AD5541CRZ-REEL7, use a first-in-first-out (FIFO) buffer to store the data and implement a data validation mechanism to detect and correct errors. Additionally, use a reliable communication protocol, such as SPI or I2C, to transfer the data to the microcontroller or other processing unit.
  • To prevent overheating and ensure reliability, it's essential to provide adequate thermal management for the AD5541CRZ-REEL7. This can be achieved by using a heat sink, ensuring good airflow, and keeping the device away from other heat sources. The maximum junction temperature (TJ) should not exceed 150°C.
