AD5541LRZ-REEL7 - Analog Devices

Description: 2.7 V to 5.5 V, Serial-Input, Voltage-Output, 16-Bit DAC

Download AD5541LRZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

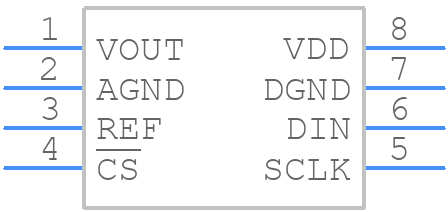

AD5541LRZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5541LRZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD5541LRZ-REEL7aaa
click to zoom
3D Models
AD5541LRZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - AD5541LRZ-REEL7aaa
click to zoom

AD5541LRZ-REEL7 Details

  • Manufacturer Part Number:

    AD5541LRZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    4.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Nom (tstl):

    1 µs

  • Supply Current-Max:

    1.1 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD5541LRZ-REEL7 Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD5541LRZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the DAC output and the load. Additionally, it's recommended to use a low-pass filter to reduce high-frequency noise and to decouple the power supply lines with capacitors.
  • The AD5541LRZ-REEL7 has a built-in calibration feature that allows for offset and gain adjustments. To calibrate the device, apply a known input voltage and measure the output voltage. Then, use the calibration registers to adjust the offset and gain to achieve the desired accuracy. It's also recommended to perform calibration at multiple temperatures to ensure accuracy over the entire operating range.
  • The maximum output current of the AD5541LRZ-REEL7 is 10 mA. If the output current exceeds this limit, the output voltage may droop or become distorted. To avoid this, ensure that the load impedance is high enough to keep the output current within the specified limit. Additionally, consider using an output buffer amplifier if the load requires a higher current.
  • The AD5541LRZ-REEL7 has a serial interface that can be connected to a microcontroller or FPGA using a SPI or I2C interface. The device requires a clock signal, chip select signal, and data input signal. Ensure that the interface signals are properly terminated and that the clock frequency is within the specified range. Additionally, consider using a level translator if the interface voltage levels are not compatible.
  • The AD5541LRZ-REEL7 has a power-on reset feature that initializes the device to a default state. During power-on, the output voltage may glitch or become undefined for a short period. To avoid this, consider adding a power-on reset circuit or a voltage supervisor to ensure that the device is properly initialized before the output voltage is enabled.
