AD5542AACPZ-REEL7 - Analog Devices

Description: DAC 1-CH Segment 16-bit 16-Pin LFCSP EP T/R

Download AD5542AACPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

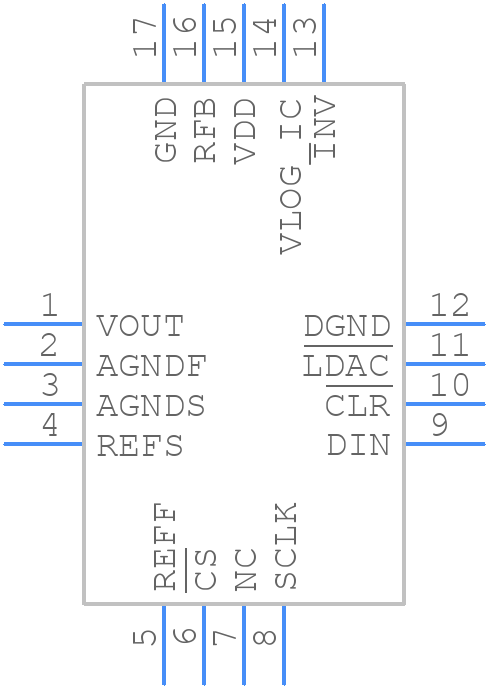

AD5542AACPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5542AACPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-22 [LFCSP_WQ]
click to zoom
3D Models
AD5542AACPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-22 [LFCSP_WQ]
click to zoom

AD5542AACPZ-REEL7 Details

  • Manufacturer Part Number:

    AD5542AACPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, MO-220WEED, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    4.5 V

  • Analog Output Voltage-Min:

    -2 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    1 µs

  • Supply Current-Max:

    0.15 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD5542AACPZ-REEL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, use a low-ESR capacitor for the VREF pin and keep the input signals away from the digital signals.
  • To ensure accuracy and linearity, it's essential to follow the recommended calibration procedure, use a high-quality voltage reference, and ensure that the device is operated within the specified temperature range. Additionally, consider using a temperature sensor to monitor the device temperature and adjust the calibration accordingly.
  • Potential sources of noise and interference include digital noise from the microcontroller or other digital components, electromagnetic interference (EMI) from nearby devices, and power supply noise. To mitigate these effects, use proper shielding, filtering, and decoupling, and ensure that the device is operated in a noise-free environment.
  • To troubleshoot issues, start by verifying the power supply voltage, checking the input signals, and ensuring that the device is properly configured. Use a logic analyzer or oscilloscope to monitor the digital signals and verify that the device is receiving the correct commands. Also, check the device's temperature and ensure that it is within the specified operating range.
  • When using the AD5542AACPZ-REEL7 in a system with multiple voltage domains, ensure that the device is properly level-shifted and that the voltage domains are properly isolated. Use voltage translators or level shifters to ensure that the device receives the correct voltage levels, and consider using a voltage regulator to ensure a stable power supply.
