AD5542ARZ-REEL7 - Analog Devices

Description: Digital to Analog Converters - DAC 16-Bit DAC BiPolar V-Out

Download AD5542ARZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

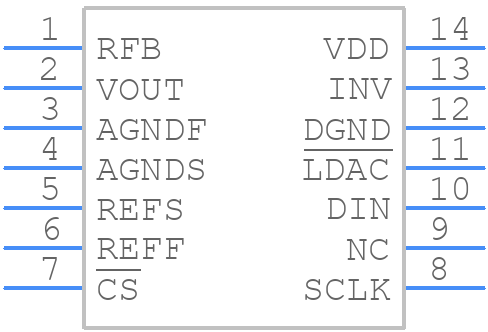

Symbol
AD5542ARZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5542ARZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-14 (SOIC)
click to zoom
3D Models
AD5542ARZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - R-14 (SOIC)
click to zoom

AD5542ARZ-REEL7 Details

  • Manufacturer Part Number:

    AD5542ARZ-REEL7

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-012AB, SOIC-14

  • Pin Count:

    14

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    4.5 V

  • Analog Output Voltage-Min:

    -2.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Nom (tstl):

    1 µs

  • Supply Current-Max:

    1.1 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

AD5542ARZ-REEL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the sensitive analog signals away from the digital signals. Also, use a low-ESR capacitor for the VREF pin and keep the capacitor leads as short as possible.
  • To ensure accuracy and stability, it's essential to follow proper PCB design and layout guidelines, use a stable and low-noise power supply, and consider using a temperature sensor to compensate for temperature effects. Additionally, consider using a calibration routine to compensate for any initial errors.
  • The recommended power-up sequence is to apply the analog power supply (VCC) first, followed by the digital power supply (VDD), and then the logic inputs. This sequence helps prevent damage or incorrect operation.
  • The AD5542ARZ-REEL7 outputs data in a 16-bit, 2's complement format. To handle the output data correctly, ensure that your microcontroller or processor is configured to receive and process the data in the correct format, taking into account the signed integer representation and the correct byte ordering.
  • To minimize EMI and ensure EMC, use a shielded enclosure, keep the AD5542ARZ-REEL7 away from high-frequency sources, use a common-mode choke or ferrite bead on the power supply lines, and ensure that the PCB layout and routing follow good EMI/EMC practices.
