AD5543CRMZ-REEL7 - Analog Devices

Description: 16 Bit Digital to Analog Converter 1 8-MSOP ,5V ,-40°C ~ 85°C ,8-MSOP(RM-8)

Download AD5543CRMZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

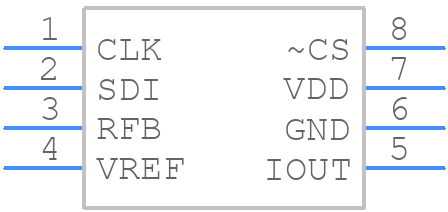

Symbol
AD5543CRMZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5543CRMZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RM-8)
click to zoom
3D Models
AD5543CRMZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - (RM-8)
click to zoom

AD5543CRMZ-REEL7 Details

  • Manufacturer Part Number:

    AD5543CRMZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    3 X 4.70 MM, ROHS COMPLIANT, MO-187AA, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    0.5 µs

  • Supply Current-Max:

    0.01 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD5543CRMZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5543CRMZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it is connected to. Additionally, it is recommended to use a low-pass filter on the reference input and to decouple the power supplies with capacitors.
  • The AD5543CRMZ-REEL7 requires a calibration process to ensure accurate voltage output. This involves applying a known input voltage and measuring the output voltage, then adjusting the internal calibration registers to achieve the desired output. The calibration process should be performed at the desired operating temperature and with the device powered from a stable supply.
  • The maximum output current of the AD5543CRMZ-REEL7 is 5 mA. If the output current exceeds this limit, it can affect the output voltage accuracy. To ensure accurate output voltage, it is recommended to keep the output current below 5 mA and to use an external buffer amplifier if higher currents are required.
  • The AD5543CRMZ-REEL7 has a built-in power-on reset (POR) circuit that resets the device to its default state when the power supply voltage falls below a certain threshold. The device also has a brownout detection (BOD) feature that detects when the power supply voltage falls below a certain level and resets the device. The POR and BOD thresholds can be adjusted using external resistors.
  • The recommended power supply decoupling for the AD5543CRMZ-REEL7 involves using a combination of ceramic and electrolytic capacitors. A 10 μF ceramic capacitor should be placed close to the device, and a 10 μF electrolytic capacitor should be placed further away from the device. This helps to filter out high-frequency noise and ensure stable power supply voltage.
