AD5552BRZ - Analog Devices

Description: AD5552BRZ, 14 bit-Bit DAC 1Msps, SPI, Microwire, 14-Pin SOIC

Download AD5552BRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

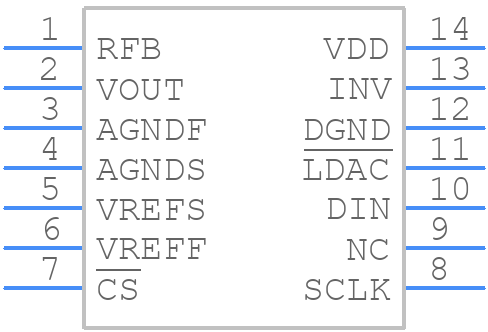

Symbol
AD5552BRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5552BRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-14 (SOIC)
click to zoom
3D Models
AD5552BRZ - Analog Devices - 3D model - Small Outline Packages - R-14 (SOIC)
click to zoom

AD5552BRZ Details

  • Manufacturer Part Number:

    AD5552BRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-012AB, NSOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    R-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    4.5 V

  • Analog Output Voltage-Min:

    -2.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Nom (tstl):

    1 µs

  • Supply Current-Max:

    1.1 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD5552BRZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the AD5552BRZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connecting the device to the power supply and output capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane and to keep the analog and digital signals separate.
  • The AD5552BRZ has an internal calibration circuit that allows for automatic calibration. However, it's recommended to perform an external calibration procedure to ensure optimal performance. This involves applying a known input voltage and adjusting the internal calibration registers to achieve the desired output voltage. The calibration procedure is described in the device's datasheet and application notes.
  • The AD5552BRZ has a maximum junction temperature of 150°C. To ensure thermal management, it's recommended to provide adequate heat sinking, use a thermally conductive PCB material, and keep the device away from heat sources. Additionally, the device should be operated within the recommended temperature range of -40°C to 125°C to ensure optimal performance and reliability.
  • To troubleshoot common issues with the AD5552BRZ, it's recommended to follow a systematic approach. First, verify the power supply voltage and ensure it's within the recommended range. Next, check the input voltage and output voltage for any errors or deviations. Then, verify the device's configuration and calibration registers. Finally, check for any noise or interference on the input or output signals. If the issue persists, consult the device's datasheet and application notes for further guidance.
  • The AD5552BRZ is designed to meet the required electromagnetic compatibility (EMC) standards. To ensure EMC compliance, it's recommended to follow good design practices, such as using a shielded enclosure, minimizing loop areas, and using EMI filters. Additionally, the device should be operated within the recommended frequency range, and the input and output signals should be properly filtered and shielded.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5552BRZ Overview

Use the download button to access the AD5552BRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD555, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
