AD5556CRUZ - Analog Devices

Description: AD5556CRUZ AD5556CRUZ, 14 bit-Bit DAC 2Msps, Parallel, 28-Pin TSSOP

Download AD5556CRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

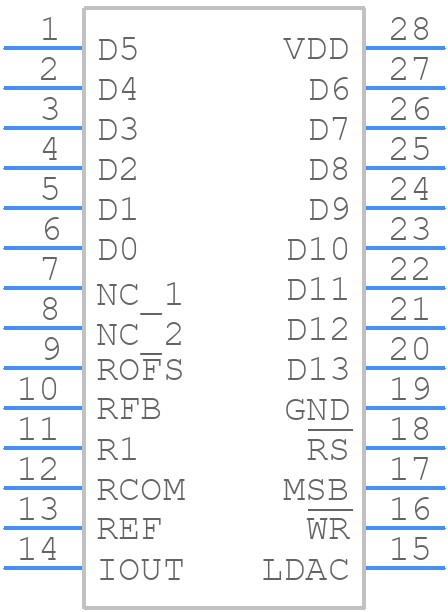

Symbol
AD5556CRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5556CRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-28 (TSSOP)-1
click to zoom
3D Models
AD5556CRUZ - Analog Devices - 3D model - Small Outline Packages - RU-28 (TSSOP)-1
click to zoom

AD5556CRUZ Details

  • Manufacturer Part Number:

    AD5556CRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AE, TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RU-28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    10 V

  • Analog Output Voltage-Min:

    -10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    0.5 µs

  • Supply Current-Max:

    0.01 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4.4 mm

AD5556CRUZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5556CRUZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves shorting the input pins to the internal reference voltage and adjusting the offset and gain to achieve accurate voltage measurement. It's also recommended to use a high-precision voltage reference and to calibrate the device at multiple temperatures.
  • The recommended power-up sequence for the AD5556CRUZ is to first apply the analog supply voltage (AVDD) and then the digital supply voltage (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry, preventing any potential damage or incorrect operation.
  • The AD5556CRUZ's internal oscillator clock frequency can be adjusted using the CLKIN pin. To ensure accurate timing and synchronization, it's recommended to use a high-quality external clock source or to use the internal oscillator with a high-quality crystal oscillator. Additionally, the clock frequency should be adjusted to match the specific application requirements.
  • To prevent overheating and ensure reliability, it's recommended to provide adequate heat sinking and thermal management for the AD5556CRUZ. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the device. Additionally, the device should be operated within the recommended temperature range and power dissipation limits.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5556CRUZ Overview

Use the download button to access the AD5556CRUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD555, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
