AD5557CRUZ - Analog Devices

Description: AD5557CRUZ, 14 bit-Bit DAC Dual, 2Msps, Parallel, 38-Pin TSSOP

Download AD5557CRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

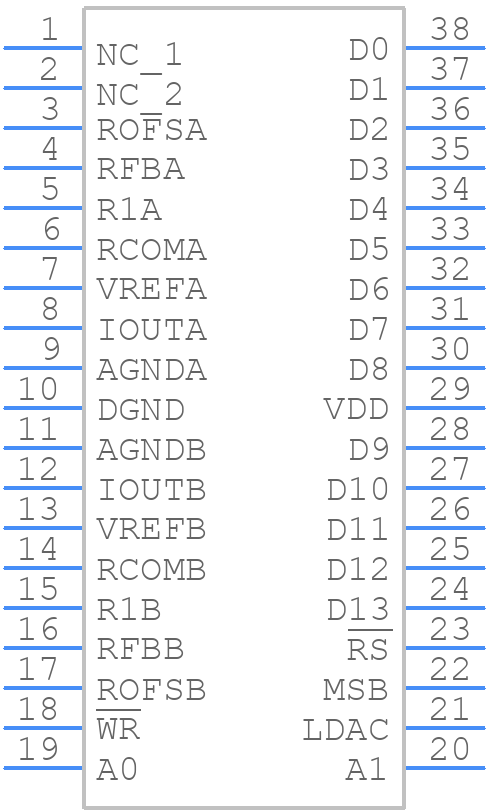

AD5557CRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5557CRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-38 (TSSOP)
click to zoom
3D Models
AD5557CRUZ - Analog Devices - 3D model - Small Outline Packages - RU-38 (TSSOP)
click to zoom

AD5557CRUZ Details

  • Manufacturer Part Number:

    AD5557CRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153BD-1, TSSOP-38

  • Pin Count:

    38

  • Manufacturer Package Code:

    RU-38

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    10 V

  • Analog Output Voltage-Min:

    -10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G38

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP38,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    0.5 µs

  • Supply Current-Max:

    0.01 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5557CRUZ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD5557CRUZ involves keeping the device away from high-frequency noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a solid ground plane is recommended. Additionally, the device should be placed near the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) to minimize noise and interference.
  • To ensure accurate voltage reference output from the AD5557CRUZ, it is essential to follow proper layout and placement guidelines, use a low-noise power supply, and decouple the device properly. Additionally, the output voltage should be buffered with an op-amp to prevent loading effects, and the device should be operated within its specified temperature range.
  • The thermal resistance of the AD5557CRUZ package (16-lead TSSOP) is typically around 30°C/W (junction-to-ambient) and 10°C/W (junction-to-case). This information is usually not provided in the datasheet but can be obtained from the manufacturer or through thermal modeling and simulation.
  • While the AD5557CRUZ can be used as a voltage regulator, it is not recommended due to its limited current drive capability (up to 10mA) and lack of short-circuit protection. The device is primarily designed as a voltage reference, and using it as a voltage regulator may compromise its accuracy and stability.
  • The AD5557CRUZ's power-on reset (POR) and brown-out detection (BOD) features can be handled by connecting the POR pin to a suitable pull-up resistor and capacitor, and the BOD pin to a voltage divider network. The POR pin should be connected to a logic-level output, and the BOD pin should be connected to a voltage source that is higher than the minimum operating voltage of the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5557CRUZ Overview

Use the download button to access the AD5557CRUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD555, or try a keyword search, such as Digital to Analog Converters
