The recommended power-up sequence is to apply the analog supply voltage (VCC) before the digital supply voltage (VDD). This ensures that the internal analog circuitry is powered up before the digital circuitry.
To ensure accurate voltage output, it is essential to decouple the analog supply voltage (VCC) with a 10uF capacitor and to use a low-impedance voltage source. Additionally, the output voltage should be buffered with an op-amp if it needs to drive a load.
The maximum output current of the AD558JNZ is 10mA. Exceeding this current limit may cause the output voltage to droop or the device to overheat.
The AD558JNZ can be interfaced with a microcontroller using a 3-wire serial interface (CLK, DIN, and DOUT). The microcontroller should provide a clock signal to the CLK pin, and the AD558JNZ will output the digital code on the DOUT pin.
The AD558JNZ is specified to operate over a temperature range of -40°C to +85°C. However, the device may still function outside this range, but its performance may degrade.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AD558JNZ Overview

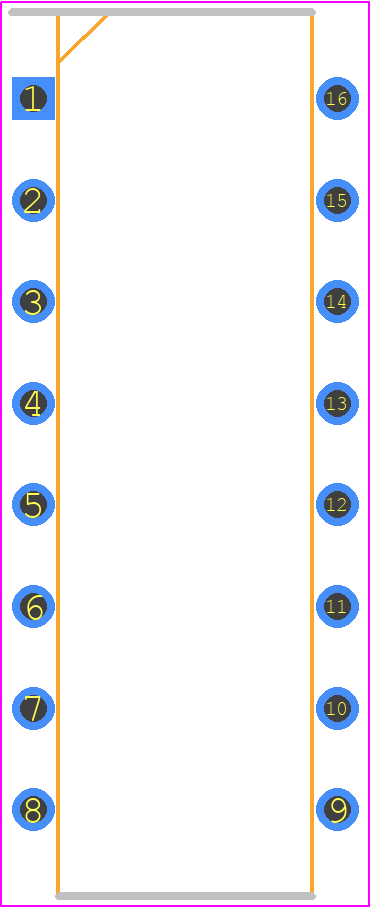

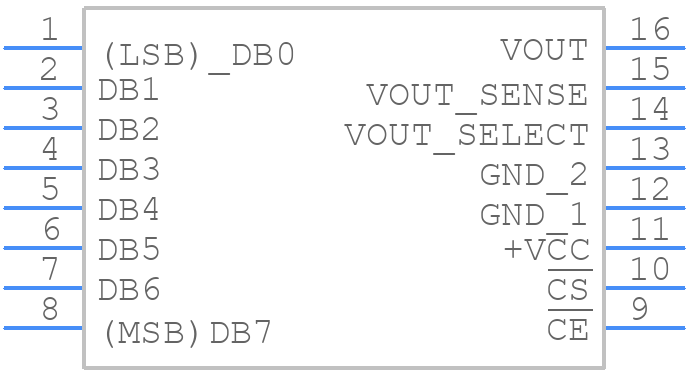

Use the download button to access the AD558JNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD558,
or try a keyword search, such as Digital to Analog Converters
