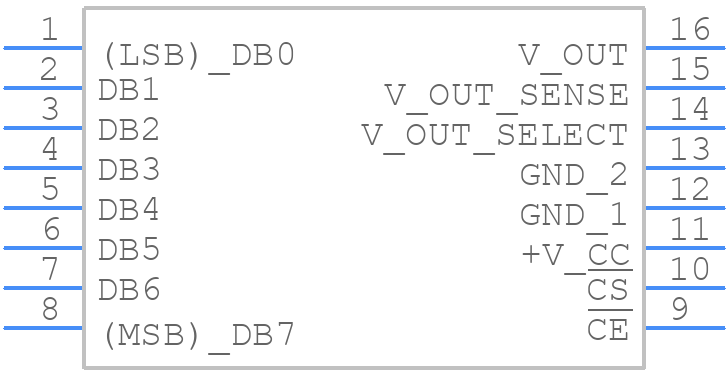

AD558TD - Analog Devices

AD558TD Details

• Manufacturer Part Number:

  AD558TD

• Source Url Status Check Date:

  2013-05-01 14:56:13.68

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  DIP

• Package Description:

  DIP-16

• Pin Count:

  16

• Manufacturer Package Code:

  D-16

• Country Of Origin:

  Philippines

• ECCN Code:

  3A001.A.2.C

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  3

• Analog Output Voltage-Max:

  2.56 V

• Converter Type:

  D/A CONVERTER

• Input Bit Code:

  COMPLEMENTARY OFFSET BINARY

• Input Format:

  PARALLEL, 8 BITS

• JESD-30 Code:

  R-CDIP-T16

• JESD-609 Code:

  e0

• Length:

  20.32 mm

• Linearity Error-Max (EL):

  0.1465%

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  CERAMIC, METAL-SEALED COFIRED

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.08 mm

• Settling Time-Max:

  3 µs

• Settling Time-Nom (tstl):

  0.8 µs

• Supply Current-Max:

  25 mA

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
