AD5592RBRUZ-RL7 - Analog Devices

Description: 8-Channel, 12-Bit, Configurable ADC/DAC with On-Chip Reference, SPI Interface

Download AD5592RBRUZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

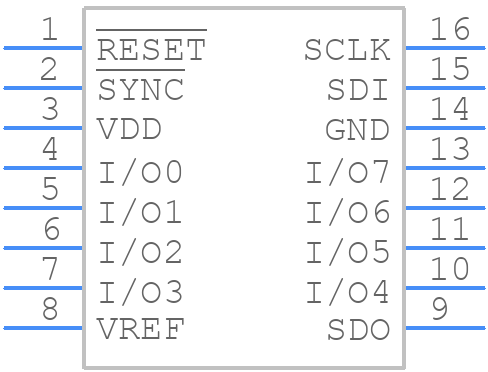

AD5592RBRUZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5592RBRUZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP 4.4 MM_2023
click to zoom
3D Models
AD5592RBRUZ-RL7 - Analog Devices - 3D model - Small Outline Packages - TSSOP 4.4 MM_2023
click to zoom

AD5592RBRUZ-RL7 Details

  • Manufacturer Part Number:

    AD5592RBRUZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-02-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5 V

  • Converter Type:

    DAC 12BIT

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Current-Max:

    2.7 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5592RBRUZ-RL7 Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD5592RBRUZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the analog-to-digital converter (ADC) or digital-to-analog converter (DAC). Additionally, it is recommended to use a bypass capacitor between the VDD and GND pins to filter out noise.
  • The AD5592RBRUZ-RL7 has an internal calibration mechanism that can be accessed through the I2C interface. The device can be calibrated by writing to the calibration registers to adjust the gain and offset of the DAC. Additionally, the device can be calibrated using an external reference voltage to improve accuracy.
  • The maximum output current of the AD5592RBRUZ-RL7 is 5 mA. If the output current exceeds this limit, the output voltage may droop or become unstable. To avoid this, it is recommended to use an external buffer amplifier or to limit the load current to ensure stable output voltage.
  • The AD5592RBRUZ-RL7 has a POR and BOR feature that resets the device in case of a power failure or brown-out condition. To handle these features, it is recommended to use an external reset circuit to hold the device in reset until the power supply has stabilized. Additionally, the device can be configured to generate an interrupt upon POR or BOR, allowing the system to take corrective action.
  • The AD5592RBRUZ-RL7 has a thermal management strategy that involves using a thermal pad on the bottom of the package to dissipate heat. To ensure optimal performance, it is recommended to use a thermal interface material (TIM) between the device and the PCB, and to design the PCB with thermal vias to dissipate heat efficiently.
