AD5593RBCPZ-RL7 - Analog Devices

Description: 8-channel, configurable ADC/DAC/GPIO ► Configurable as any combination of ► 8 12-bit DAC channels ► 8 12-bit ADC channels ► 8 general-purpose I/O pins ► Integrated temperature sensor ► 16-lead TSSOP and LFCSP and 16-ball WLCSP packages ► I 2C interface

Download AD5593RBCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

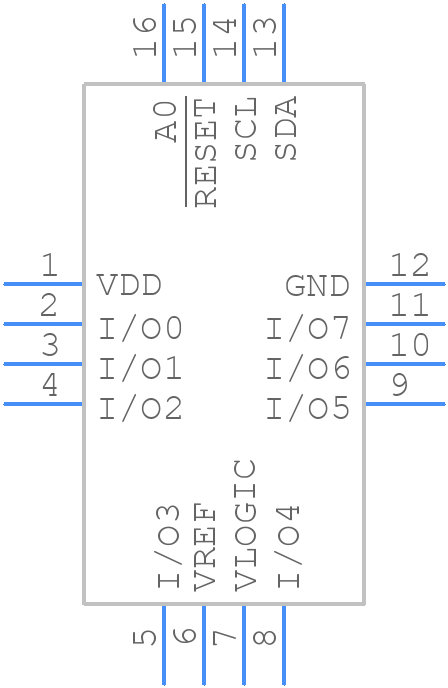

AD5593RBCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5593RBCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-Lead Lead Frame Chip Scale Package [LFCSP]
click to zoom
3D Models
AD5593RBCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - 16-Lead Lead Frame Chip Scale Package [LFCSP]
click to zoom

AD5593RBCPZ-RL7 Details

  • Manufacturer Part Number:

    AD5593RBCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-32

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.048828%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

AD5593RBCPZ-RL7 Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD5593RBCPZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources to minimize noise. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure accurate voltage reference performance, it is essential to decouple the VREF pin with a 10uF capacitor to GND, and to keep the voltage reference input pin (VREFIN) connected to a stable voltage source. Additionally, the voltage reference output should be buffered with an op-amp to prevent loading.
  • The recommended power-up sequence for the AD5593RBCPZ-RL7 is to power up the digital supply (VDD) first, followed by the analog supply (AVDD), and then the voltage reference (VREF). This sequence helps to prevent latch-up and ensures proper device operation.
  • To minimize noise and interference, it is essential to use a solid ground plane, keep analog and digital signals separate, and use shielding and filtering techniques. Additionally, the AD5593RBCPZ-RL7 should be placed away from high-frequency sources and digital clocks.
  • The maximum operating temperature range for the AD5593RBCPZ-RL7 is -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and it is recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5593RBCPZ-RL7 Overview

Use the download button to access the AD5593RBCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD559, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
