AD5593RBRUZ-RL7 - Analog Devices

Description: 8-Channel, 12-Bit, Configurable ADC/DAC with On-Chip Reference, I2C Interface

Download AD5593RBRUZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

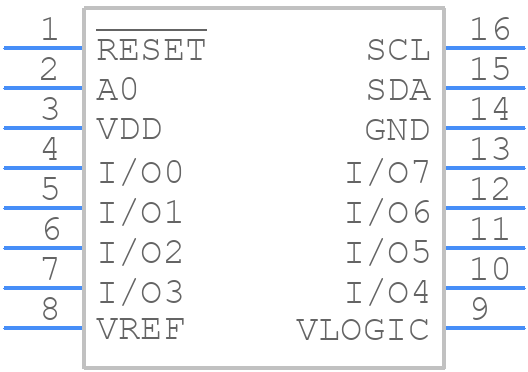

Symbol
AD5593RBRUZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5593RBRUZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Thin Shrink Small Outline Package [TSSOP] (RU-16)
click to zoom
3D Models
AD5593RBRUZ-RL7 - Analog Devices - 3D model - Small Outline Packages - 16-Lead Thin Shrink Small Outline Package [TSSOP] (RU-16)
click to zoom

AD5593RBRUZ-RL7 Details

  • Manufacturer Part Number:

    AD5593RBRUZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-12-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.048828%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AD5593RBRUZ-RL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Additionally, use a low-ESR capacitor for the AVDD and DVDD pins, and keep the input and output traces short and direct.
  • Calibration involves adjusting the internal offset and gain of the ADC to match the specific application requirements. This can be done using the internal calibration registers or through external calibration using a precision voltage source and a microcontroller.
  • The maximum sampling rate of the AD5593RBRUZ-RL7 is 300 kSPS. As the sampling rate increases, the power consumption also increases. To minimize power consumption, it is recommended to use the lowest sampling rate required for the application.
  • The internal reference voltage of the AD5593RBRUZ-RL7 is 2.5V. If an external reference voltage is used, it should be within the range of 1.8V to 3.6V. Using an external reference voltage can improve the accuracy and stability of the ADC, but it requires additional components and careful layout and routing.
  • The AD5593RBRUZ-RL7 has built-in ESD protection, but it is still important to follow proper ESD handling and storage procedures. Additionally, latch-up protection is built-in, but it is recommended to use a latch-up protection diode and a series resistor to prevent latch-up conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5593RBRUZ-RL7 Overview

Use the download button to access the AD5593RBRUZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD559, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
