AD5611AKSZ-REEL7 - Analog Devices

Description: ANALOG DEVICES - AD5611AKSZ-REEL7 - Digital to Analogue Converter, 10 bit, 1.7 MSPS, SPI, 2.7V to 5.5V, SC-70, 6 Pins

Download AD5611AKSZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

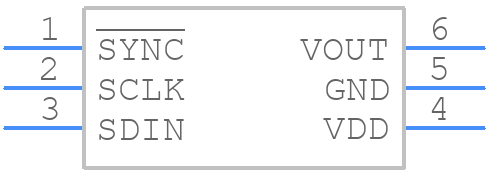

AD5611AKSZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5611AKSZ-REEL7 - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - KS-6 (SC70)_1
click to zoom
3D Models
AD5611AKSZ-REEL7 - Analog Devices - 3D model - SOT23 (6-Pin) - KS-6 (SC70)_1
click to zoom

AD5611AKSZ-REEL7 Details

  • Manufacturer Part Number:

    AD5611AKSZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    SC-70, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    KS-6

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP6,.08

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.25 mm

AD5611AKSZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5611AKSZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the accuracy of the AD5611AKSZ-REEL7's output voltage, it's essential to use a high-precision voltage reference, such as the ADR421 or ADR4525, and to minimize noise and interference on the input and output lines. Additionally, the device should be operated within its specified temperature range and power supply voltage.
  • The recommended power-up sequence for the AD5611AKSZ-REEL7 is to first apply the analog power supply (VCC) and then the digital power supply (VDD). This ensures that the device's internal circuitry is properly initialized and that the output voltage is stable.
  • The AD5611AKSZ-REEL7 can source or sink up to 10mA of output current. To handle the output current capability, it's recommended to use a buffer amplifier or an op-amp to increase the output current drive capability, if necessary. Additionally, the output voltage should be limited to the specified range to prevent damage to the device.
  • The AD5611AKSZ-REEL7 has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB to dissipate heat. Additionally, the device should be operated within its specified temperature range, and the PCB should be designed to minimize thermal resistance.
