AD5628BCBZ-1-RL7 - Analog Devices

Description: Digital to Analog Converters - DAC Octal 3V 12bit SPI DAC with reference

Download AD5628BCBZ-1-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

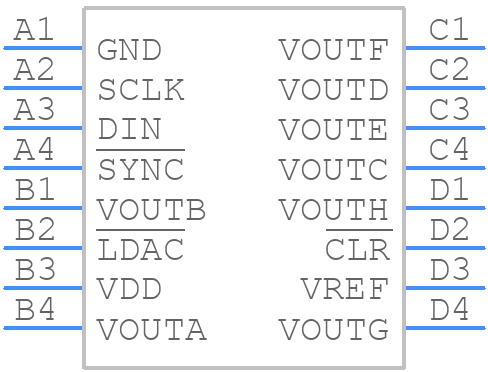

Symbol
AD5628BCBZ-1-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5628BCBZ-1-RL7 - Analog Devices PCB footprint - BGA - BGA - CB-16-16
click to zoom
3D Models
AD5628BCBZ-1-RL7 - Analog Devices - 3D model - BGA - CB-16-16
click to zoom

AD5628BCBZ-1-RL7 Details

  • Manufacturer Part Number:

    AD5628BCBZ-1-RL7

  • Source Url Status Check Date:

    2013-05-01 14:56:13.899

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Package Description:

    ROHS COMPLIANT, WLCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CB-16-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PBGA-B16

  • JESD-609 Code:

    e1

  • Length:

    2.605 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA16,4X4,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.65 mm

  • Settling Time-Max:

    7 µs

  • Settling Time-Nom (tstl):

    2.5 µs

  • Supply Current-Max:

    2.25 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.605 mm

AD5628BCBZ-1-RL7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence for the AD5628 is to power up VDD first, followed by VREF, and then the digital interface (e.g., SPI or I2C). This ensures that the internal reference is stable before the digital interface is enabled.
  • To minimize output voltage glitches during power-up or power-down, it is recommended to use an external capacitor (e.g., 10nF) between the VOUT pin and GND. This capacitor helps to filter out any voltage transients and ensures a smooth output voltage transition.
  • The AD5628's output can drive a maximum capacitance of 1nF. Exceeding this capacitance may cause instability or oscillations in the output voltage. If a larger capacitance is required, an external op-amp buffer can be used to drive the load.
  • To ensure accurate output voltage settling time, it is recommended to use a low-noise, low-impedance power supply, and to minimize the distance between the AD5628 and the load. Additionally, the output voltage settling time can be improved by using an external capacitor (e.g., 10nF) between the VOUT pin and GND.
  • For the AD5628's digital interface (e.g., SPI or I2C), it is recommended to use a low-impedance, low-capacitance PCB layout and routing. This can be achieved by using short, direct traces, and avoiding vias and layer changes. Additionally, it is recommended to use a ground plane or shield to minimize electromagnetic interference (EMI).
