AD5629RACPZ-3-RL7 - Analog Devices

Description: Digital to Analog Converters - DAC Octal 12bit I2C DAC with 1.25V/2.5V ref

Download AD5629RACPZ-3-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

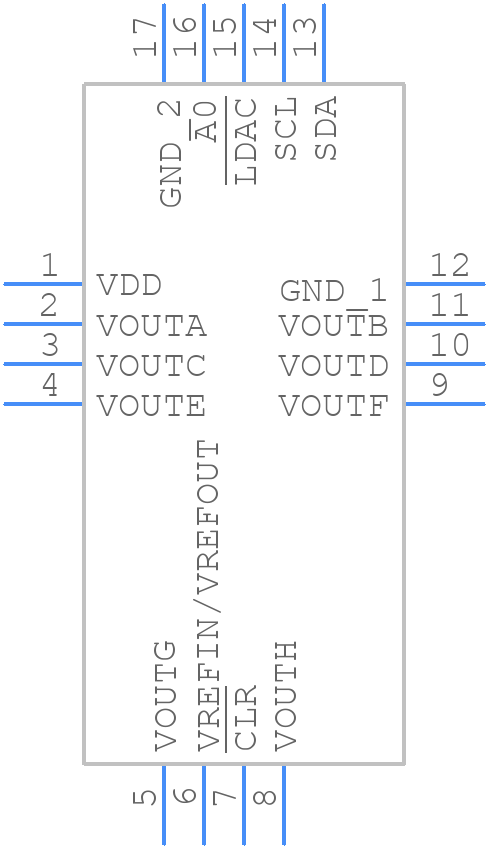

AD5629RACPZ-3-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5629RACPZ-3-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-17
click to zoom
3D Models
AD5629RACPZ-3-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-17
click to zoom

AD5629RACPZ-3-RL7 Details

  • Manufacturer Part Number:

    AD5629RACPZ-3-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-17

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Max:

    7 µs

  • Settling Time-Nom (tstl):

    2.5 µs

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

AD5629RACPZ-3-RL7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to power up VDD first, followed by AVDD, and then the digital interface (e.g., SPI or I2C). This ensures that the internal voltage regulators are properly initialized.
  • To ensure accurate voltage output, it is essential to follow proper PCB layout and design guidelines, including using a solid ground plane, minimizing noise and interference, and using a high-quality voltage reference. Additionally, calibrate the device using the internal calibration feature or an external calibration method.
  • The AD5629RACPZ-3-RL7 can drive capacitive loads up to 1 μF. However, it is recommended to limit the capacitance to 100 nF or less to ensure stability and prevent oscillations.
  • To handle thermal considerations, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and avoid exposing the device to high temperatures (above 125°C) for extended periods. Monitor the junction temperature (TJ) and adjust the power dissipation accordingly.
  • Follow a star-grounding layout, keep analog and digital signals separate, and use a solid ground plane. Route the output voltage traces away from the digital interface and noise-sensitive areas. Use a low-impedance path for the output voltage and decouple the power supplies.
