AD5629RBCPZ-1-RL7 - Analog Devices

Description: Digital to Analog Converters - DAC Octal 12bit I2C DAC with 1.25V/2.5V ref

Download AD5629RBCPZ-1-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

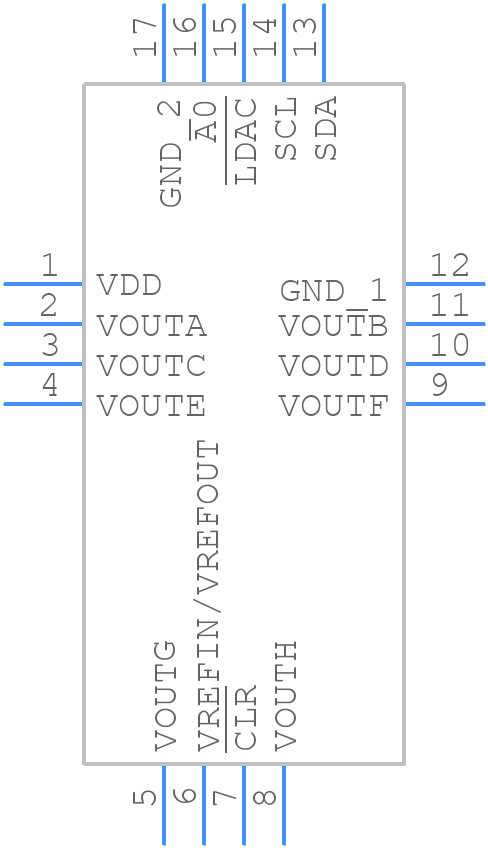

AD5629RBCPZ-1-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5629RBCPZ-1-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-17
click to zoom
3D Models
AD5629RBCPZ-1-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-17
click to zoom

AD5629RBCPZ-1-RL7 Details

  • Manufacturer Part Number:

    AD5629RBCPZ-1-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-17

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Max:

    7 µs

  • Settling Time-Nom (tstl):

    2.5 µs

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

AD5629RBCPZ-1-RL7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures that the internal circuitry is properly initialized and minimizes the risk of latch-up or other unexpected behavior.
  • To ensure accurate voltage output, it is essential to use a high-precision voltage reference (VREF) and to minimize noise on the VREF input. Additionally, the output voltage should be buffered with an op-amp if it needs to drive a load, and the output capacitor should be carefully selected to minimize settling time and oscillations.
  • The maximum output current of the AD5629RBCPZ-1-RL7 is 5mA. Exceeding this current limit can cause the output voltage to droop or the device to overheat, leading to reduced accuracy and reliability.
  • The AD5629RBCPZ-1-RL7 can be interfaced with a microcontroller using a standard SPI interface. The microcontroller should be configured to operate in SPI mode, and the AD5629RBCPZ-1-RL7 should be connected to the microcontroller's SPI pins. The microcontroller can then send commands to the AD5629RBCPZ-1-RL7 to set the output voltage.
  • The thermal shutdown temperature of the AD5629RBCPZ-1-RL7 is 150°C. If the device temperature exceeds this limit, it will shut down to prevent damage. It is essential to ensure proper thermal management, such as using a heat sink or providing adequate airflow, to prevent overheating.
