AD5664RBCBZ-3-RL7 - Analog Devices

Description: DAC 4-CH Resistor-String 16-bit 12-Pin WLCSP T/R

Download AD5664RBCBZ-3-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

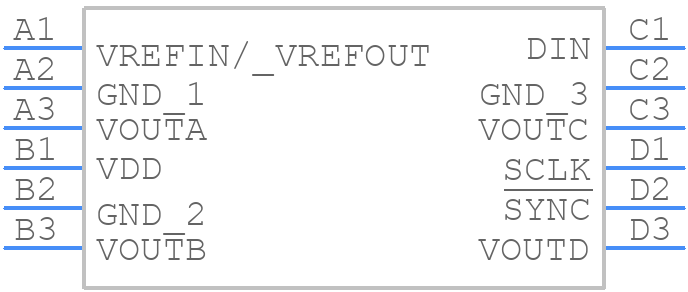

Symbol
AD5664RBCBZ-3-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5664RBCBZ-3-RL7 - Analog Devices PCB footprint - BGA - BGA - (CB-12-19)
click to zoom
3D Models
AD5664RBCBZ-3-RL7 - Analog Devices - 3D model - BGA - (CB-12-19)
click to zoom

AD5664RBCBZ-3-RL7 Details

  • Manufacturer Part Number:

    AD5664RBCBZ-3-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    CB-12-9

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PBGA-B12

  • JESD-609 Code:

    e1

  • Length:

    2.245 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA12,3X4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.65 mm

  • Settling Time-Nom (tstl):

    4 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.665 mm

AD5664RBCBZ-3-RL7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVCC, and then the digital supplies (VDDIO and VDDC). This ensures that the internal voltage regulators are powered up correctly.
  • To ensure accurate voltage output, it is essential to follow proper layout and grounding techniques, use a low-noise power supply, and minimize noise coupling into the device. Additionally, ensure that the output voltage is within the specified range and that the load current is within the recommended limits.
  • The AD5664RBCBZ-3-RL7 can drive capacitive loads up to 100 nF. However, it is recommended to limit the capacitance to 10 nF or less to ensure stability and prevent oscillations.
  • To implement a voltage clamp or limit, you can use an external voltage clamp circuit or a voltage limiter IC. Alternatively, you can use the internal voltage limiter feature of the AD5664RBCBZ-3-RL7 by configuring the device to limit the output voltage to a specific range.
  • The thermal shutdown temperature of the AD5664RBCBZ-3-RL7 is typically around 150°C. The device will shut down if the junction temperature exceeds this value to prevent damage.
