AD5664RBRMZ-3REEL7 - Analog Devices

Description: Digital to Analog Converters - DAC Quad 3V 16bit SPI DAC with reference

Download AD5664RBRMZ-3REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

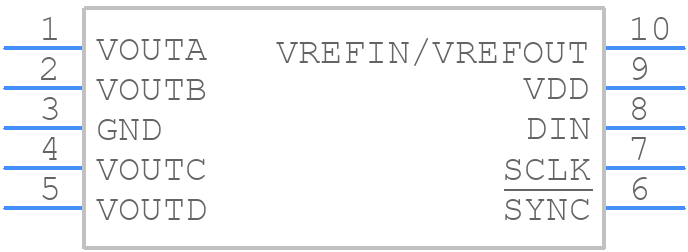

AD5664RBRMZ-3REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5664RBRMZ-3REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10 (MSOP)
click to zoom
3D Models
AD5664RBRMZ-3REEL7 - Analog Devices - 3D model - Small Outline Packages - RM-10 (MSOP)
click to zoom

AD5664RBRMZ-3REEL7 Details

  • Manufacturer Part Number:

    AD5664RBRMZ-3REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    3.6 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    7 µs

  • Settling Time-Nom (tstl):

    4 µs

  • Supply Current-Max:

    1.1 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

AD5664RBRMZ-3REEL7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to power up VDD first, followed by AVCC, and then the digital inputs. This ensures that the internal voltage regulators are powered up correctly and prevents any potential latch-up conditions.
  • To ensure accurate voltage output, it is essential to follow proper layout and grounding techniques, use a low-noise power supply, and minimize digital noise coupling into the analog circuitry. Additionally, the output voltage should be buffered with an op-amp if it needs to drive a load.
  • The AD5664RBRMZ-3REEL7 can drive a maximum capacitance of 1nF. Exceeding this capacitance may cause instability or oscillations in the output voltage.
  • The thermal shutdown feature is designed to protect the device from overheating. If the device exceeds the maximum junction temperature, it will shut down. To handle this, ensure proper heat sinking, reduce power consumption, and implement a thermal monitoring and shutdown circuit if necessary.
  • The recommended layout and routing for the AD5664RBRMZ-3REEL7 involves keeping the analog and digital circuits separate, using a star-ground configuration, and minimizing track lengths and widths to reduce noise and parasitic inductance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5664RBRMZ-3REEL7 Overview

Use the download button to access the AD5664RBRMZ-3REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD566, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
