AD5668SRU-EP-1 - Analog Devices

Description: Digital to Analog Converters - DAC Octal 3V 16bit SPI DAC with reference

Download AD5668SRU-EP-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

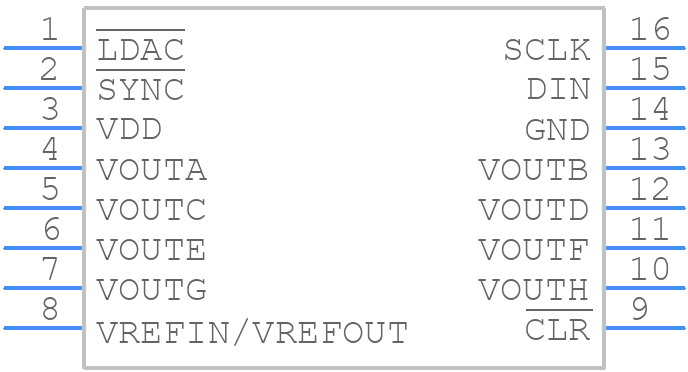

AD5668SRU-EP-1 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5668SRU-EP-1 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD5668SRU-EP-1 - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD5668SRU-EP-1 Details

  • Manufacturer Part Number:

    AD5668SRU-EP-1

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • ECCN Code:

    3A001.a.2.c

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.032%

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    MILITARY

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AD5668SRU-EP-1 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVCC, and then the digital supplies (VDDIO and VDDC). This ensures that the internal voltage regulators are powered up correctly.
  • The AD5668SRU-EP-1 is rated for operation from -40°C to 125°C. Ensure that the device is properly heat-sinked and that the ambient temperature is within the specified range. Also, consider the thermal resistance of the package and the PCB layout to ensure proper heat dissipation.
  • The maximum output current of the AD5668SRU-EP-1 is 25 mA per channel. Exceeding this current may cause damage to the device or affect its performance.
  • To minimize noise sensitivity, use proper PCB layout techniques, such as separating analog and digital grounds, using decoupling capacitors, and shielding sensitive signals. Also, consider using a low-pass filter or a ferrite bead to filter out high-frequency noise.
  • Follow good PCB design practices, such as keeping analog and digital signals separate, using short and direct traces, and avoiding vias and right-angle turns. Also, consider using a 4-layer PCB with a solid ground plane to reduce noise and improve signal integrity.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5668SRU-EP-1 Overview

Use the download button to access the AD5668SRU-EP-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD566, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
