AD5669RACPZ-2-RL7 - Analog Devices

Description: Digital to Analog Converters - DAC IC Octal 16bit I2C Vout

Download AD5669RACPZ-2-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

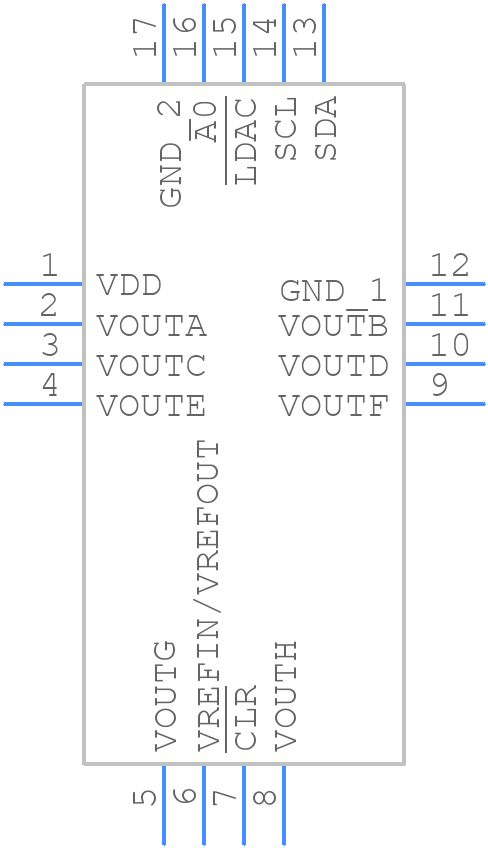

Symbol
AD5669RACPZ-2-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5669RACPZ-2-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-17
click to zoom
3D Models
AD5669RACPZ-2-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-17
click to zoom

AD5669RACPZ-2-RL7 Details

  • Manufacturer Part Number:

    AD5669RACPZ-2-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-17

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Max:

    7 µs

  • Settling Time-Nom (tstl):

    2.5 µs

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

AD5669RACPZ-2-RL7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVCC, and then the digital inputs. This ensures that the internal circuitry is properly initialized and avoids any potential latch-up or damage to the device.
  • To ensure accurate voltage output, it is essential to follow proper layout and grounding techniques, use a low-noise power supply, and minimize digital noise coupling to the analog output. Additionally, calibrate the device using the internal calibration feature or an external calibration circuit.
  • The AD5669RACPZ-2-RL7 can drive capacitive loads up to 1 nF. However, it is recommended to limit the capacitance to 100 pF or less to ensure stability and prevent oscillations.
  • Yes, the AD5669RACPZ-2-RL7 can be used in a ratiometric configuration, where the output voltage is proportional to the supply voltage. This can be useful in applications where the output voltage needs to track the supply voltage.
  • The thermal shutdown feature is designed to protect the device from overheating. If the device exceeds the maximum junction temperature, it will shut down. To handle this, ensure proper heat sinking, use a thermal pad or heat sink, and monitor the device temperature using an external temperature sensor.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5669RACPZ-2-RL7 Overview

Use the download button to access the AD5669RACPZ-2-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD566, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
