AD5671RBRUZ - Analog Devices

Description: Analog Devices AD5671RBRUZ, 8-channel 12 bit Serial DAC, 20-Pin TSSOP

Download AD5671RBRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

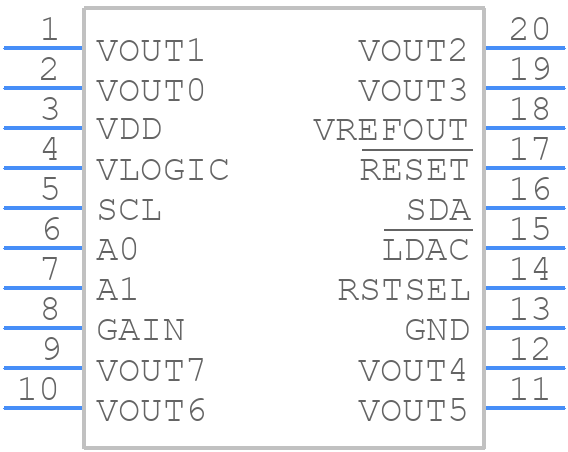

AD5671RBRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5671RBRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-20 (TSSOP)
click to zoom
3D Models
AD5671RBRUZ - Analog Devices - 3D model - Small Outline Packages - RU-20 (TSSOP)
click to zoom

AD5671RBRUZ Details

  • Manufacturer Part Number:

    AD5671RBRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AD5671RBRUZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVDD, and then the digital supplies (DVDD and OVDD). This ensures that the internal voltage regulators are powered up correctly.
  • To ensure accurate voltage output, it is essential to decouple the AVDD and VDD pins with 10uF capacitors, and to use a low-noise, low-dropout voltage regulator to power the device. Additionally, the output voltage should be filtered with a 10uF capacitor to reduce noise.
  • The maximum output current of the AD5671RBRUZ is 10mA per channel. Exceeding this current limit can cause the output voltage to droop or the device to overheat.
  • The AD5671RBRUZ can be programmed using a microcontroller through a serial interface (SPI or I2C). The microcontroller sends commands and data to the AD5671RBRUZ, which then updates the output voltage accordingly. The specific programming sequence and commands can be found in the datasheet.
  • The thermal shutdown temperature of the AD5671RBRUZ is 150°C. If the device temperature exceeds this limit, it will shut down to prevent damage.
