AD5676BCPZ-REEL7 - Analog Devices

Description: Octal, 16-Bit nanoDAC+ with SPI Interface

Download AD5676BCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

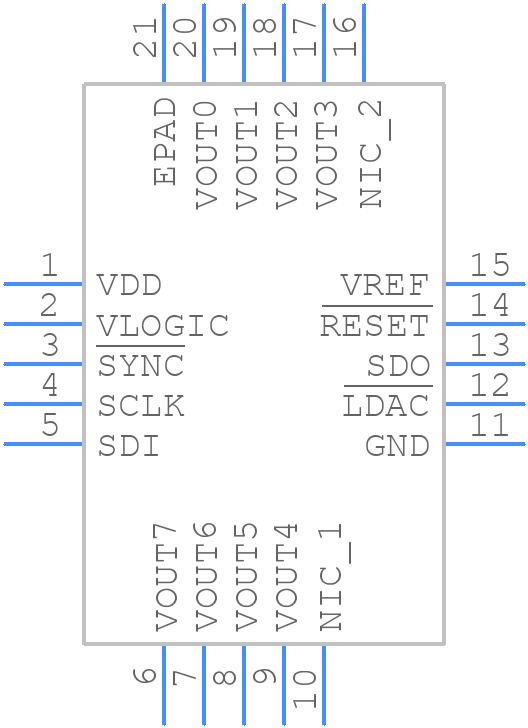

AD5676BCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5676BCPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - AD5676BCPZ-REEL7
click to zoom
3D Models
AD5676BCPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - AD5676BCPZ-REEL7
click to zoom

AD5676BCPZ-REEL7 Details

  • Manufacturer Part Number:

    AD5676BCPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.0046%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

AD5676BCPZ-REEL7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVDD, and then the digital supplies (DVDD and OVDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • To ensure accurate voltage output, it is essential to use a stable and low-noise power supply, decouple the power pins with suitable capacitors, and use a high-precision voltage reference. Additionally, ensure that the output voltage is within the specified range and that the load current is within the recommended limits.
  • The AD5676 can supply up to 10 mA of output current per channel. However, it is recommended to limit the output current to 5 mA per channel to ensure reliable operation and to prevent overheating.
  • To minimize noise and interference, use a low-pass filter at the output, keep the output traces short and away from noisy signals, and use a ground plane to reduce electromagnetic interference. Additionally, consider using shielding and filtering components to further reduce noise and interference.
  • The recommended layout and routing for the AD5676 involves keeping the analog and digital signals separate, using a star-ground configuration, and minimizing the length of the output traces. Additionally, ensure that the power and ground pins are connected to a solid ground plane to reduce noise and interference.
