AD5676BRUZ - Analog Devices

Description: High performance ► High relative accuracy (INL): ±3 LSB maximum at 16 bits ► Total unadjusted error (TUE): ±0.14% of FSR maximum ► Offset error: ±1.5 mV maximum ► Gain error: ±0.06% of FSR maximum ► Wide operating ranges ► −40°C to +125°C temperature range ► 2.7 V to 5.5 V power supply ► Easy implementation ► User selectable gain of 1 or 2 (GAIN pin/gain bit) ► Reset to zero scale or midscale (RSTSEL pin) ► 1.8 V logic compatibility ► 50 MHz SPI with readback or daisy chain ► 20-lead, TSSOP and

Download AD5676BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

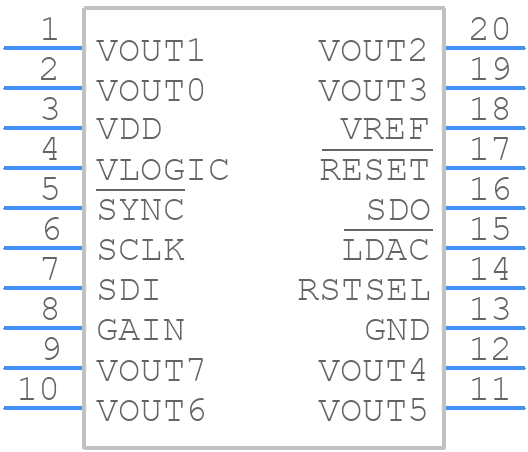

AD5676BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5676BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20-Lead Thin Shrink Small Outline Package [TSSOP] (RU-20)
click to zoom
3D Models
AD5676BRUZ - Analog Devices - 3D model - Small Outline Packages - 20-Lead Thin Shrink Small Outline Package [TSSOP] (RU-20)
click to zoom

AD5676BRUZ Details

  • Manufacturer Part Number:

    AD5676BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.0046%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5676BRUZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVDD, and then the digital supplies (DVDD and OVDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • To ensure accurate voltage output, it is essential to use a high-precision voltage reference, such as the ADR4520 or ADR4540, and to follow proper PCB layout and grounding techniques to minimize noise and interference.
  • The maximum output current capability of the AD5676BRUZ is 10 mA per channel. Exceeding this limit can cause damage to the device or affect its performance.
  • The AD5676BRUZ has built-in fault detection and protection features, including overcurrent protection, overvoltage protection, and thermal shutdown. Additionally, you can implement external fault detection and protection circuits using the device's fault detection pins (FAULT and FAULTB).
  • To minimize noise and interference, it is recommended to follow a star-grounding scheme, keep analog and digital traces separate, and use a solid ground plane. Additionally, place decoupling capacitors close to the device's power pins and use a low-ESR capacitor for the AVDD pin.
