AD5677RBCPZ-2 - Analog Devices

Description: Digital to Analog Converters - DAC 16-Ch16-BITnanoDAC+with2ppm/Cref,I2C

Download AD5677RBCPZ-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

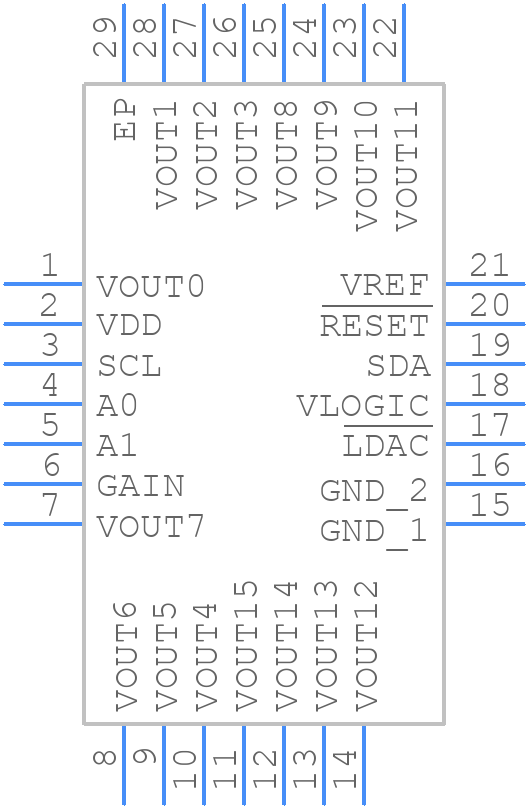

Symbol
AD5677RBCPZ-2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5677RBCPZ-2 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - cp-28-9
click to zoom
3D Models
AD5677RBCPZ-2 - Analog Devices - 3D model - Quad Flat No-Lead - cp-28-9
click to zoom

AD5677RBCPZ-2 Details

  • Manufacturer Part Number:

    AD5677RBCPZ-2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    CP-28-9

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-04-10

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Output Voltage-Max:

    5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N28

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.006103%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.16SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Settling Time-Max:

    8 µs

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Current-Max:

    4.2 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

AD5677RBCPZ-2 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to power up the VDD pin first, followed by the AVDD pin, and then the DVDD pin. This ensures that the internal analog and digital circuits are properly initialized.
  • To ensure accurate voltage output, it is essential to use a high-quality external reference voltage source, and to decouple the VREF pin with a 10nF capacitor to reduce noise and oscillations.
  • The AD5677RBCPZ-2 can sink or source up to 10mA of output current per channel. However, it is recommended to limit the output current to 5mA per channel to ensure reliable operation and to prevent overheating.
  • The AD5677RBCPZ-2 has a built-in fault detection mechanism that can be enabled by setting the FLTEN bit in the control register. When a fault is detected, the FLT pin will go low, indicating an error condition. The fault detection mechanism can detect errors such as overtemperature, undervoltage, and output short-circuit conditions.
  • To ensure optimal performance and to minimize noise and electromagnetic interference (EMI), it is recommended to follow a star-ground layout and to keep the analog and digital signal traces separate. Additionally, it is recommended to use a solid ground plane and to decouple the power supply pins with 10uF capacitors.
