AD5693RACPZ-1RL7 - Analog Devices

Description: Digital to Analog Converters - DAC 16-BIT 12C nanoDAC+ with on-chip ref

Download AD5693RACPZ-1RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

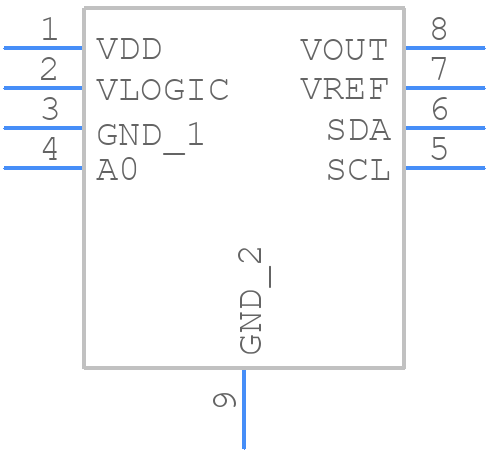

Symbol
AD5693RACPZ-1RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5693RACPZ-1RL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-10
click to zoom
3D Models
AD5693RACPZ-1RL7 - Analog Devices - 3D model - Small Outline No-lead - CP-8-10
click to zoom

AD5693RACPZ-1RL7 Details

  • Manufacturer Part Number:

    AD5693RACPZ-1RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.005 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.65 mm

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

AD5693RACPZ-1RL7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVDD, and then the digital supplies (DVDD and OVDD). This ensures that the internal voltage regulators are powered up correctly.
  • To ensure accurate voltage output, it is essential to decouple the power supplies (VDD, AVDD, DVDD, and OVDD) with high-quality capacitors (e.g., 10 μF ceramic capacitors) and to use a low-noise, low-impedance power supply. Additionally, ensure that the output voltage is not loaded excessively, and the output capacitor (COUT) is properly sized.
  • The maximum output current capability of the AD5693RACPZ-1RL7 is 10 mA. Exceeding this current limit may cause the output voltage to droop or the device to overheat.
  • The AD5693RACPZ-1RL7 can be interfaced with a microcontroller using a standard SPI interface. The microcontroller should be configured to operate in SPI mode, and the AD5693RACPZ-1RL7 should be connected to the microcontroller's SPI pins (SCK, MOSI, and MISO).
  • The internal voltage reference in the AD5693RACPZ-1RL7 provides a stable voltage reference for the DAC, ensuring that the output voltage is accurate and stable. The internal reference can be bypassed if an external reference is desired.
