AD5696ARUZ-RL7 - Analog Devices

Description: Digital to Analog Converters - DAC Quad 16 bit 4-CH w/ I2C INTERFACE

Download AD5696ARUZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

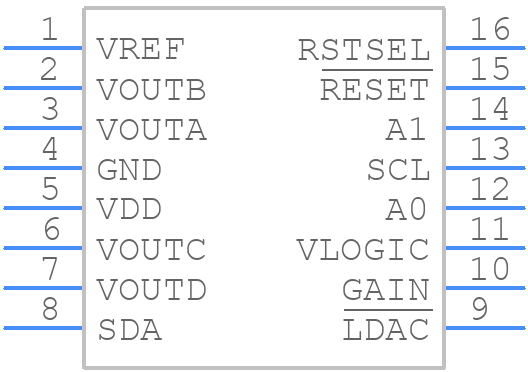

Symbol
AD5696ARUZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5696ARUZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD5696ARUZ-RL7 - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD5696ARUZ-RL7 Details

  • Manufacturer Part Number:

    AD5696ARUZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    8 µs

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Current-Max:

    0.7 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5696ARUZ-RL7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to power up the VDD pin first, followed by the AVDD pin. This ensures that the internal voltage regulators are powered up correctly and prevents any potential latch-up conditions.
  • To ensure accurate voltage output, it is recommended to use a high-accuracy external reference voltage, and to ensure that the output voltage is within the specified output voltage range. Additionally, the output voltage should be buffered with an op-amp if it needs to drive a load.
  • The maximum capacitance that can be driven by the AD5696ARUZ-RL7 is 100nF. Exceeding this capacitance may cause instability or oscillations in the output voltage.
  • The AD5696ARUZ-RL7 has a built-in thermal shutdown feature that shuts down the device when the junction temperature exceeds 150°C. To handle thermal shutdown, it is recommended to provide adequate heat sinking and to ensure that the device is operated within the specified temperature range.
  • The recommended layout and routing for the AD5696ARUZ-RL7 involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the traces to reduce noise and interference. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5696ARUZ-RL7 Overview

Use the download button to access the AD5696ARUZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD569, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
