AD5696RBCPZ-RL7 - Analog Devices

Description: Digital to Analog Converters - DAC Quad 16B 4CH I2C IF w/on chip ref

Download AD5696RBCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

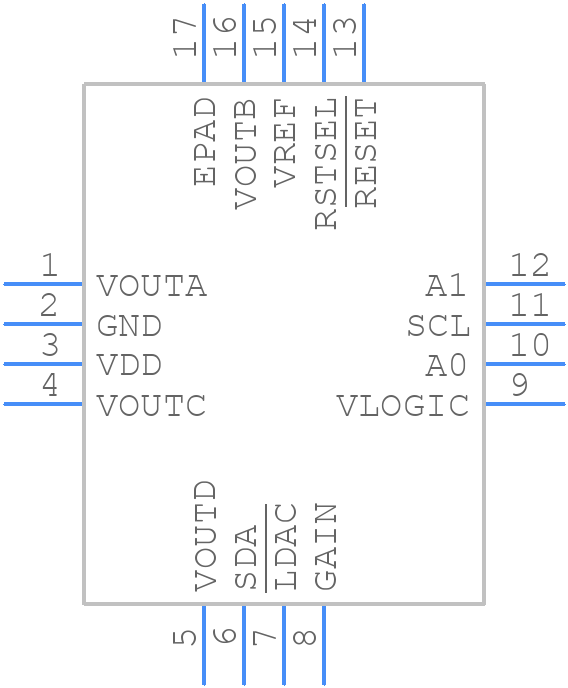

AD5696RBCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5696RBCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-22 [LFCSP_WQ]
click to zoom
3D Models
AD5696RBCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-22 [LFCSP_WQ]
click to zoom

AD5696RBCPZ-RL7 Details

  • Manufacturer Part Number:

    AD5696RBCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    CSP

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.005 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0046%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Max:

    8 µs

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Current-Max:

    1.3 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

AD5696RBCPZ-RL7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVDD, and then the digital supplies (DVDD and OVDD). This ensures that the internal voltage regulators are powered up correctly.
  • To ensure accurate voltage output, it is essential to decouple the power supplies (VDD, AVDD, DVDD, and OVDD) with high-quality capacitors (e.g., 10uF ceramic capacitors) and to use a low-noise, low-impedance power supply. Additionally, ensure that the output voltage is measured directly at the output pin, and not through a long PCB trace or cable.
  • The maximum output current capability of the AD5696RBCPZ-RL7 is 10mA per channel. Exceeding this current limit may cause the output voltage to droop or the device to overheat.
  • To ensure proper thermal management, it is recommended to provide a thermal pad or heat sink on the PCB, and to ensure good airflow around the device. The maximum junction temperature (TJ) of the AD5696RBCPZ-RL7 is 150°C, and it is essential to keep the device within this temperature range to ensure reliable operation.
  • To minimize noise and ensure reliable operation, it is recommended to follow a star-grounding layout, keep analog and digital signals separate, and use short, direct traces for power and output signals. Additionally, avoid running digital signals near the analog output pins.
