AD5722RBREZ - Analog Devices

Description: AD5722RBREZ, 12 bit-Bit DAC Dual, 1.07Msps, SPI, Microwire, 24-Pin TSSOP EP

Download AD5722RBREZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

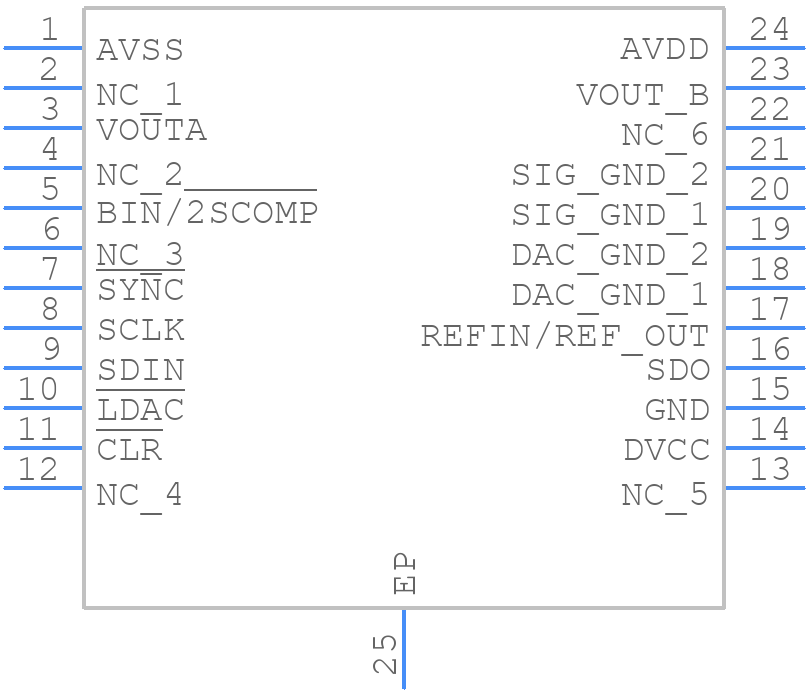

AD5722RBREZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5722RBREZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RE-24 (TSSOP)
click to zoom
3D Models
AD5722RBREZ - Analog Devices - 3D model - Small Outline Packages - RE-24 (TSSOP)
click to zoom

AD5722RBREZ Details

  • Manufacturer Part Number:

    AD5722RBREZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RE-24

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    10.8 V

  • Analog Output Voltage-Min:

    -10.8 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    12 µs

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Current-Max:

    3.25 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5722RBREZ Frequently Asked Questions (FAQs)

  • The AD5722RBREZ requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and place the device close to the analog signal sources. Additionally, decoupling capacitors should be placed as close to the device as possible.
  • The AD5722RBREZ requires calibration to ensure accurate performance. Calibration involves adjusting the internal DACs to match the desired output voltage range. This can be done using the device's built-in calibration mode or through external calibration using a precision voltage source and a multimeter.
  • The recommended power-up sequence for the AD5722RBREZ is to first apply the analog power supply (VCC), followed by the digital power supply (VDD), and finally the input voltage (VIN). This sequence helps prevent damage or malfunction due to voltage sequencing issues.
  • The AD5722RBREZ has an internal voltage reference that requires careful handling to ensure stability and accuracy. It is recommended to bypass the internal reference with an external capacitor to reduce noise and ensure stability. Additionally, the reference input should be decoupled from the power supply to prevent noise coupling.
  • The AD5722RBREZ has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, it is recommended to provide adequate heat sinking, ensure good airflow, and avoid overheating the device. Additionally, the device should be operated within the recommended temperature range to prevent thermal shutdown.
