AD5724AREZ-REEL7 - Analog Devices

Description: DAC 4-CH Resistor-String 12-bit Automotive 24-Pin TSSOP EP T/R

Download AD5724AREZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

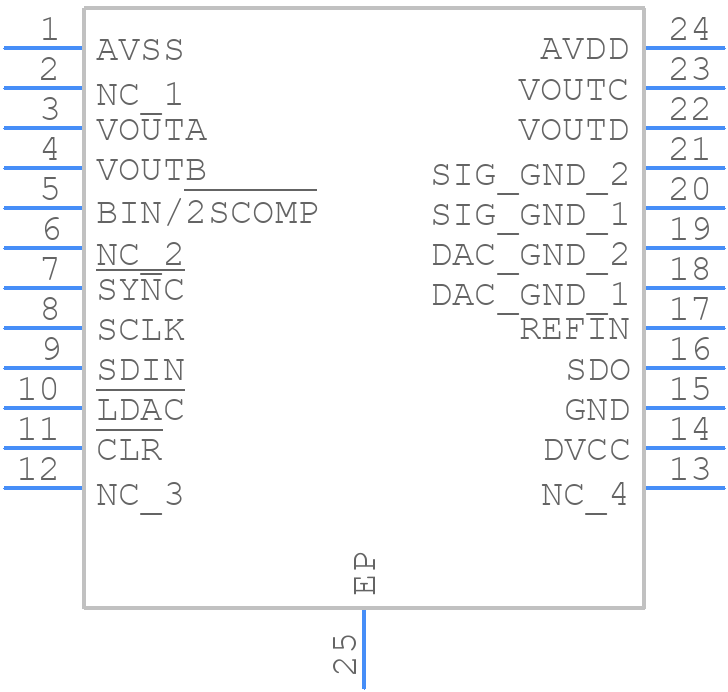

Symbol
AD5724AREZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5724AREZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RE-24 (TSSOP)
click to zoom
3D Models
AD5724AREZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RE-24 (TSSOP)
click to zoom

AD5724AREZ-REEL7 Details

  • Manufacturer Part Number:

    AD5724AREZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153ADT, TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RE-24

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    10.8 V

  • Analog Output Voltage-Min:

    -10.8 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    12 µs

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5724AREZ-REEL7 Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD5724AREZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To ensure accuracy and stability, it's essential to follow proper calibration and trimming procedures, as outlined in the datasheet. Additionally, using a high-quality voltage reference and ensuring good thermal management can help maintain accuracy and stability over temperature and time.
  • The AD5724AREZ-REEL7 requires a stable power supply with low noise and ripple. It's recommended to use a high-quality voltage regulator, decoupling capacitors, and a noise filter to ensure a stable power supply. Additionally, it's essential to follow proper power-up and power-down sequencing to prevent damage to the device.
  • The AD5724AREZ-REEL7 can be interfaced with a microcontroller or FPGA using a serial peripheral interface (SPI) or I2C interface. Key considerations for digital communication include ensuring proper clock synchronization, using a suitable communication protocol, and implementing error detection and correction mechanisms.
  • The AD5724AREZ-REEL7 has a maximum junction temperature of 150°C. To prevent overheating, it's essential to ensure good thermal management by using a heat sink, thermal interface material, and a well-designed PCB with adequate thermal dissipation. Additionally, reducing power consumption and using a low-power mode can help minimize heat generation.
