AD5726YRSZ-1REEL - Analog Devices

Description: Digital to Analog Converters - DAC Quad 12Bit DAC 0.5 LSB INL SERIAL

Download AD5726YRSZ-1REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

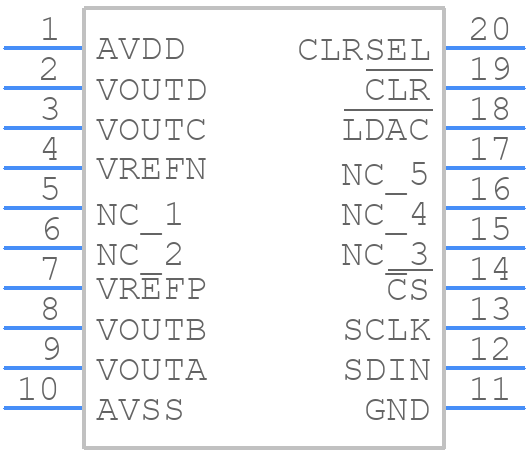

AD5726YRSZ-1REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5726YRSZ-1REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-20_2023
click to zoom
3D Models
AD5726YRSZ-1REEL - Analog Devices - 3D model - Small Outline Packages - RS-20_2023
click to zoom

AD5726YRSZ-1REEL Details

  • Manufacturer Part Number:

    AD5726YRSZ-1REEL

  • Source Url Status Check Date:

    2013-05-01 14:56:14.538

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, MO-150AE, SSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RS-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    12

  • Number of Functions:

    4

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Settling Time-Max:

    13 µs

  • Settling Time-Nom (tstl):

    13 µs

  • Supply Current-Max:

    1.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

AD5726YRSZ-1REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5726YRSZ-1REEL involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
  • To ensure the accuracy of the AD5726YRSZ-1REEL's output voltage, it is essential to use a high-precision voltage reference, such as the ADR435, and to follow proper PCB layout and routing guidelines. Additionally, calibrating the device during production and using a high-quality power supply can also help to improve accuracy.
  • The AD5726YRSZ-1REEL is rated for operation over the industrial temperature range of -40°C to +85°C. However, it is essential to note that the device's performance and accuracy may degrade at extreme temperatures, and proper thermal management is crucial to ensure reliable operation.
  • Yes, the AD5726YRSZ-1REEL can be used in a ratiometric configuration, where the output voltage is proportional to the input voltage. This configuration can provide improved accuracy and reduced sensitivity to power supply noise. However, it is essential to follow proper design guidelines and to ensure that the input voltage is within the device's specified range.
  • To troubleshoot common issues with the AD5726YRSZ-1REEL, start by verifying the power supply voltage and ensuring that it is within the specified range. Check the input voltage and current, and ensure that the device is properly configured and calibrated. Use an oscilloscope to monitor the output voltage and look for signs of oscillation or instability. If the issue persists, consult the datasheet and application notes for guidance, or contact Analog Devices' technical support for further assistance.
