AD5748ACPZ - Analog Devices

Description: Analog Devices AD5748ACPZ Instrumentation Amplifier 100kHz GBW, 2.7 → 5.5 V, 32-Pin LFCSP

Download AD5748ACPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

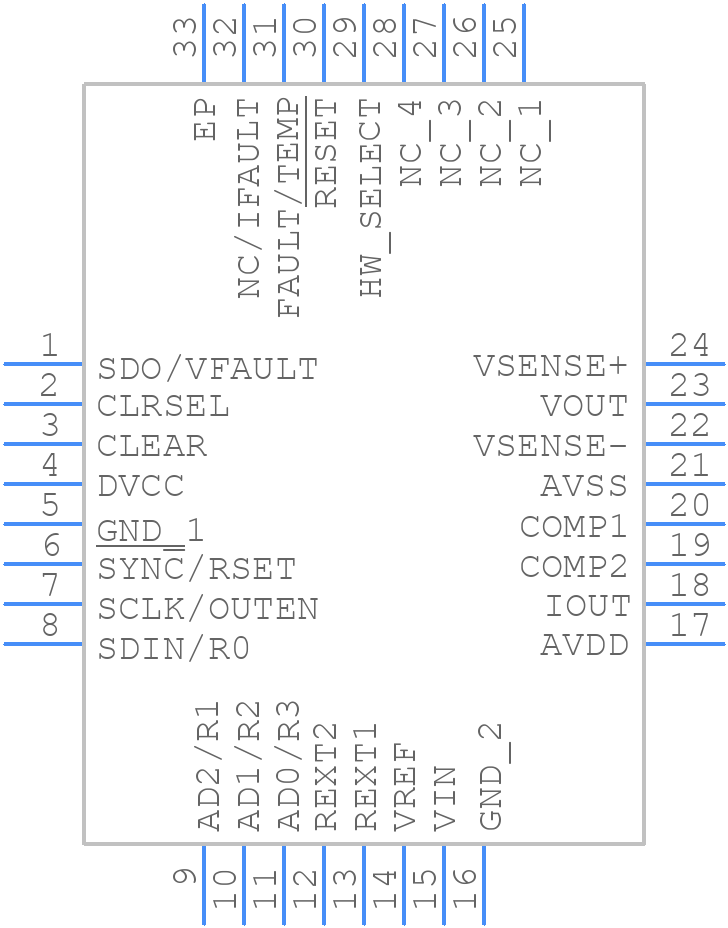

AD5748ACPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5748ACPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - [LFCSP_WQ]33
click to zoom
3D Models
AD5748ACPZ - Analog Devices - 3D model - Quad Flat No-Lead - [LFCSP_WQ]33
click to zoom

AD5748ACPZ Details

  • Manufacturer Part Number:

    AD5748ACPZ

  • Source Url Status Check Date:

    2013-05-01 14:56:14.58

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-7

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -24 V

  • Neg Supply Voltage-Min (Vsup):

    -12 V

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    24 V

  • Supply Voltage-Min (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

AD5748ACPZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, keep the input and output traces short and away from noise sources.
  • Calibration involves adjusting the internal offset and gain of the ADC. The AD5748ACPZ has an internal calibration mode that can be enabled by setting the CAL pin high. The device then performs a self-calibration routine to adjust its internal offset and gain.
  • The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD), and then the clock signal. This ensures that the analog circuitry is powered up before the digital circuitry.
  • The AD5748ACPZ can output data in either binary or twos complement format. The output mode is selected by the MODE pin. Binary format is suitable for most applications, but twos complement format may be required for certain digital signal processing applications.
  • The AD5748ACPZ is a high-speed device that can generate heat. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. Also, ensure that the device is operated within its specified temperature range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5748ACPZ Overview

Use the download button to access the AD5748ACPZ schematic symbol, PCB footprint, and 3D model.
