AD5761ACPZ-RL7 - Analog Devices

Description: Digital to Analog Converters - DAC 16-BIT 8LSB, No Reference

Download AD5761ACPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

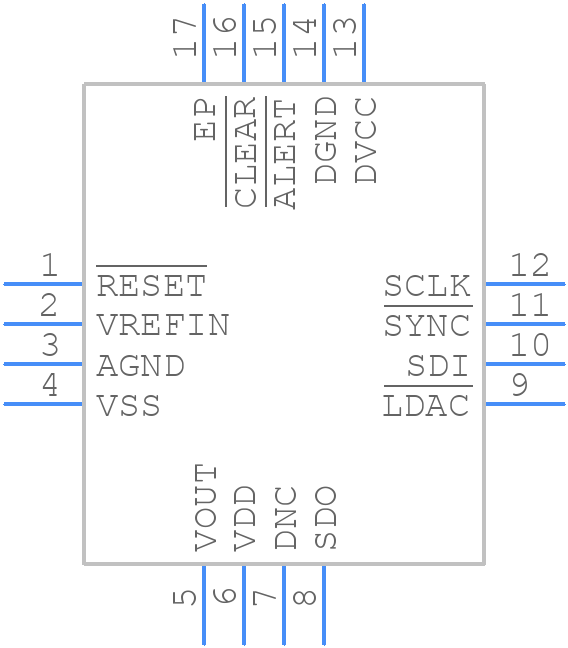

AD5761ACPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5761ACPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-22 16-Lead LFCSP
click to zoom
3D Models
AD5761ACPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-22 16-Lead LFCSP
click to zoom

AD5761ACPZ-RL7 Details

  • Manufacturer Part Number:

    AD5761ACPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    10.5 V

  • Analog Output Voltage-Min:

    -10.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Max:

    0.0125 µs

  • Settling Time-Nom (tstl):

    9 µs

  • Supply Current-Max:

    6.5 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD5761ACPZ-RL7 Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD5761ACPZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the power supply. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog layer, a dedicated digital layer, and two power planes. The datasheet provides a recommended layout and routing diagram, but it's also recommended to consult with an experienced PCB designer for optimal results.
  • The AD5761ACPZ-RL7 requires calibration and configuration to ensure optimal performance. This can be done using the ADI's evaluation board and software, or by writing custom code to interface with the device. It's recommended to consult the datasheet and the ADI's application notes for guidance on calibration and configuration. Additionally, it's recommended to consult with an experienced engineer or a technical support specialist from ADI for specific guidance on calibration and configuration for your application.
  • The AD5761ACPZ-RL7 has a maximum junction temperature of 150°C, and it's recommended to keep the device temperature below 125°C for optimal performance and reliability. Thermal management considerations include providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. It's also recommended to consult the datasheet and the ADI's application notes for guidance on thermal management and to consult with a thermal management expert for specific guidance on your application.
  • Troubleshooting issues with the AD5761ACPZ-RL7 involves using a systematic approach to identify the root cause of the problem. This includes checking the power supply, the input signals, and the output voltages, as well as verifying the communication protocol and the device configuration. It's recommended to consult the datasheet and the ADI's application notes for guidance on troubleshooting, and to use tools such as oscilloscopes and logic analyzers to aid in the debugging process. Additionally, it's recommended to consult with an experienced engineer or a technical support specialist from ADI for specific guidance on troubleshooting your application.
  • The AD5761ACPZ-RL7 is available in radiation-hardened and high-reliability versions, such as the AD5761RHACPZ-RL7 and the AD5761CHACPZ-RL7. These versions are designed for use in harsh environments, such as aerospace and defense applications. The selection of the right version depends on the specific requirements of your application, including the radiation environment, the operating temperature range, and the required level of reliability. It's recommended to consult the datasheet and the ADI's application notes for guidance on selecting the right version, and to consult with an experienced engineer or a technical support specialist from ADI for specific guidance on your application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5761ACPZ-RL7 Overview

Use the download button to access the AD5761ACPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD576, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
