AD5761ARUZ-RL7 - Analog Devices

Description: Digital to Analog Converters - DAC 16-BIT 8LSB, No Reference

Download AD5761ARUZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

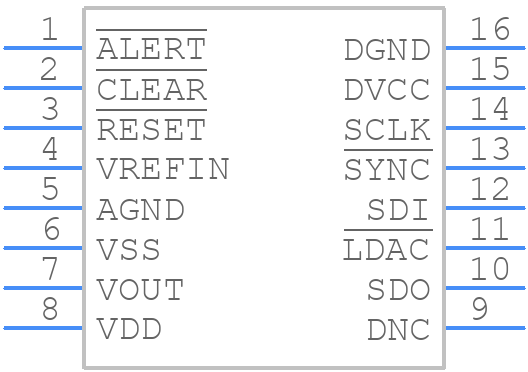

Symbol
AD5761ARUZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5761ARUZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD5761ARUZ-RL7 - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD5761ARUZ-RL7 Details

  • Manufacturer Part Number:

    AD5761ARUZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    10.5 V

  • Analog Output Voltage-Min:

    -10.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    0.0125 µs

  • Settling Time-Nom (tstl):

    9 µs

  • Supply Current-Max:

    6.5 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5761ARUZ-RL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, use a low-ESR capacitor for the AVDD and DVDD pins, and keep the decoupling capacitors close to the pins.
  • The AD5761ARUZ-RL7 has an internal calibration mechanism. However, it's recommended to perform an external calibration using an external voltage reference and a precision resistor network. The calibration procedure involves applying a known voltage to the input and adjusting the internal DAC registers to achieve the desired output voltage.
  • The AD5761ARUZ-RL7 has a maximum junction temperature of 150°C. Ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. Also, ensure the device is operated within the recommended temperature range of -40°C to 125°C.
  • The AD5761ARUZ-RL7 has a power-on reset circuit that ensures the device is in a known state after power-up. Ensure that the power supplies are sequenced correctly, with the analog supply (AVDD) powered up before the digital supply (DVDD). Also, ensure that the reset pin is properly connected and the device is held in reset until the power supplies are stable.
  • The AD5761ARUZ-RL7 is a high-frequency device and can be susceptible to electromagnetic interference. Ensure good shielding, use a ground plane, and keep the device away from high-frequency sources. Also, use EMI filters and shielding on the input and output lines to minimize radiation and susceptibility.
