AD5761RTRUZ-EP - Analog Devices

Description: Digital to Analog Converters - DAC 16-BIT 1LSB, 5ppm Reference

Download AD5761RTRUZ-EP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

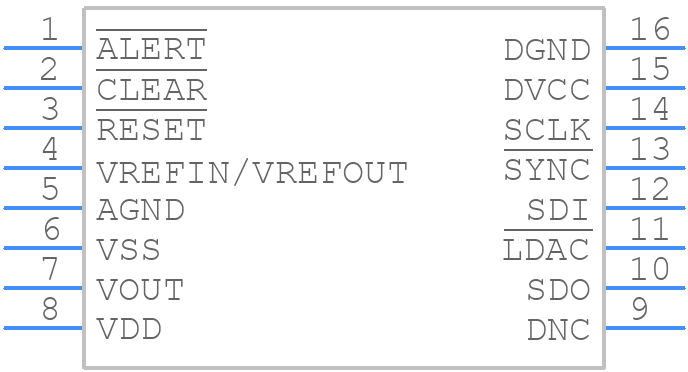

Symbol
AD5761RTRUZ-EP - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5761RTRUZ-EP - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16
click to zoom
3D Models
AD5761RTRUZ-EP - Analog Devices - 3D model - Small Outline Packages - RU-16
click to zoom

AD5761RTRUZ-EP Details

  • Manufacturer Part Number:

    AD5761RTRUZ-EP

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A001.A.2.C

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    10 V

  • Analog Output Voltage-Min:

    -10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -11 V

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    9 µs

  • Supply Voltage-Nom:

    11 V

  • Surface Mount:

    YES

  • Temperature Grade:

    MILITARY

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AD5761RTRUZ-EP Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog supply voltage (VCC) first, followed by the digital supply voltage (VDD). This ensures that the internal analog circuitry is powered up before the digital circuitry.
  • To ensure accurate voltage output, it is essential to follow proper layout and grounding techniques, use a low-noise power supply, and minimize noise coupling into the device. Additionally, the output voltage should be filtered using a low-pass filter to reduce noise and ripple.
  • The maximum output current capability of the AD5761RTRUZ-EP is 10 mA. Exceeding this current limit can cause damage to the device or affect its accuracy.
  • The AD5761RTRUZ-EP has a maximum junction temperature of 150°C. To ensure reliable operation, it is essential to provide adequate heat sinking and thermal management to keep the junction temperature below the maximum rating.
  • The recommended layout and routing for the AD5761RTRUZ-EP involves keeping the analog and digital signal paths separate, using a solid ground plane, and minimizing the length of the output traces to reduce noise and electromagnetic interference (EMI).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5761RTRUZ-EP Overview

Use the download button to access the AD5761RTRUZ-EP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD576, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
