AD5764CSUZ-REEL7 - Analog Devices

Description: Digital to Analog Converters - DAC QUAD 16-BIT +/-15V DAC

Download AD5764CSUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

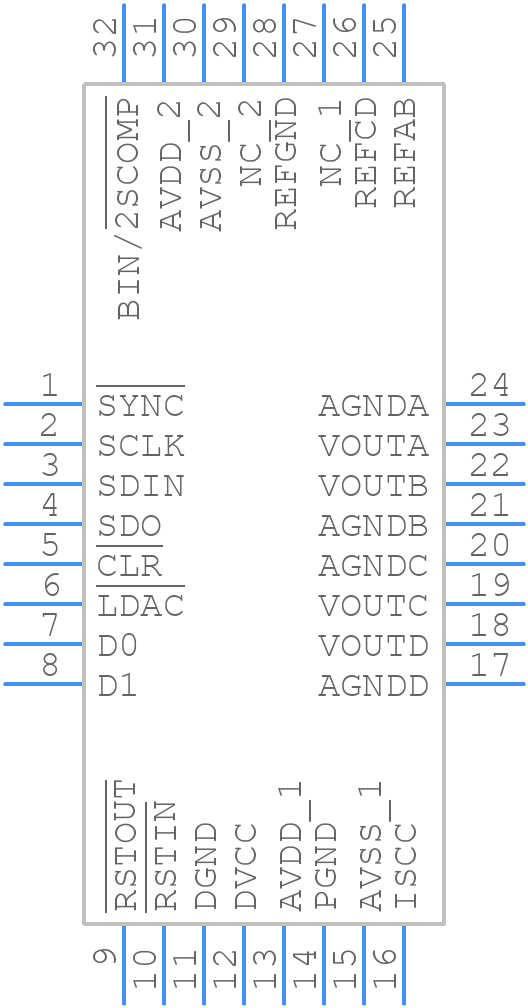

AD5764CSUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5764CSUZ-REEL7 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - SU-32-2 (TQFP)
click to zoom
3D Models
AD5764CSUZ-REEL7 - Analog Devices - 3D model - Quad Flat Packages - SU-32-2 (TQFP)
click to zoom

AD5764CSUZ-REEL7 Details

  • Manufacturer Part Number:

    AD5764CSUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    TQFP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    SU-32-2

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    10.5263 V

  • Analog Output Voltage-Min:

    -10.5263 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    OFFSET BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TQFP

  • Package Equivalence Code:

    TQFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

AD5764CSUZ-REEL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signal traces separate. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The AD5764CSUZ-REEL7 requires a calibration process to ensure accurate performance. This can be done using the ADI's evaluation board and software tools, such as the AD5764 Evaluation Board and the ADI's DAC software. Additionally, the device requires a specific configuration for the desired output range, gain, and offset, which can be done through the device's registers.
  • The AD5764CSUZ-REEL7 has a maximum junction temperature of 150°C. To ensure thermal management, it's recommended to use a heat sink, ensure good airflow, and avoid blocking the airflow around the device. Additionally, the device should be operated within the recommended temperature range of -40°C to 125°C.
  • The AD5764CSUZ-REEL7 requires a specific power-on reset and power sequencing to ensure proper operation. It's recommended to follow the power-on reset timing diagram in the datasheet and to sequence the power supplies in the correct order (VDD, AVDD, and DVDD).
  • The AD5764CSUZ-REEL7 is a high-frequency device and requires proper electromagnetic compatibility (EMC) design considerations. It's recommended to use shielding, filtering, and grounding techniques to minimize EMI and RFI. Additionally, the device should be designed to meet the required EMC standards, such as CISPR and FCC.
