AD5764SSUZ-EP-RL7 - Analog Devices

Description: Digital to Analog Converters - DAC QUAD 16-BIT +/-15V DAC

Download AD5764SSUZ-EP-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

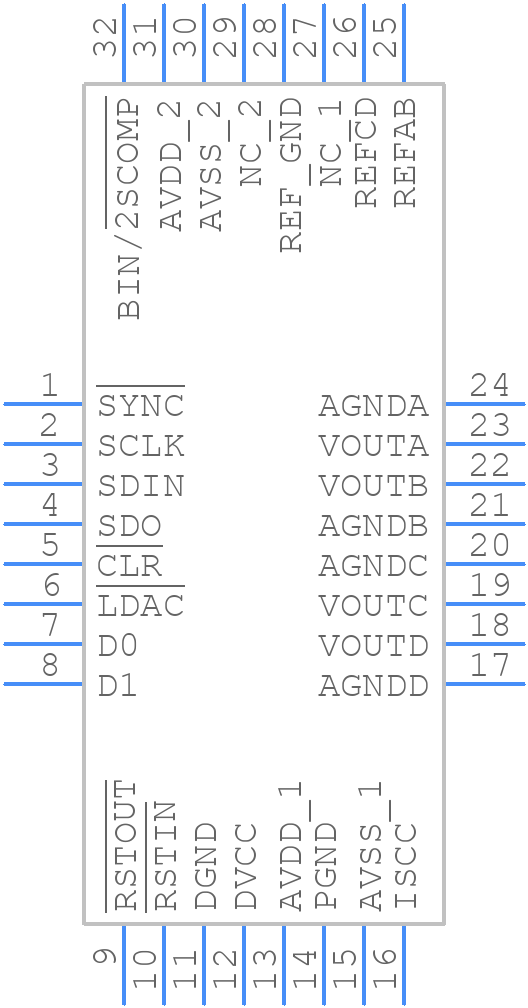

AD5764SSUZ-EP-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5764SSUZ-EP-RL7 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - SU-32-2 (TQFP)
click to zoom
3D Models
AD5764SSUZ-EP-RL7 - Analog Devices - 3D model - Quad Flat Packages - SU-32-2 (TQFP)
click to zoom

AD5764SSUZ-EP-RL7 Details

  • Manufacturer Part Number:

    AD5764SSUZ-EP-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    SU-32-2

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    14 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    OFFSET BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQFP-G32

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.003%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -12 V

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TQFP

  • Package Equivalence Code:

    TQFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    8 µs

  • Supply Current-Max:

    3.75 mA

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

AD5764SSUZ-EP-RL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Additionally, use a low-ESR capacitor for the AVDD and DVDD pins, and keep the decoupling capacitors close to the device.
  • The AD5764SSUZ-EP-RL7 requires a calibration process to ensure accurate performance. This can be done using the ADI's evaluation board software or by writing custom code to perform the calibration. Additionally, the device requires configuration of the output range, gain, and offset, which can be done through the SPI interface.
  • The AD5764SSUZ-EP-RL7 has a maximum junction temperature of 150°C. To ensure thermal management, use a heat sink or a thermal pad, and ensure good airflow around the device. Additionally, ensure that the device is operated within the recommended temperature range of -40°C to 125°C.
  • To troubleshoot issues with the AD5764SSUZ-EP-RL7, first check the power supply and ground connections, then verify the SPI interface configuration and communication. Check the output voltage and current limits, and ensure that the device is properly calibrated and configured. If issues persist, consult the datasheet and application notes, or contact Analog Devices' support team.
  • To ensure electromagnetic compatibility, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the output lines. Additionally, ensure that the device is properly grounded and that the PCB layout is designed to minimize radiation.
