AD5767BCBZ-RL7 - Analog Devices

Description: Digital to Analog Converters - DAC 16 channel 12 bit BIPOLAR DAC

Download AD5767BCBZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

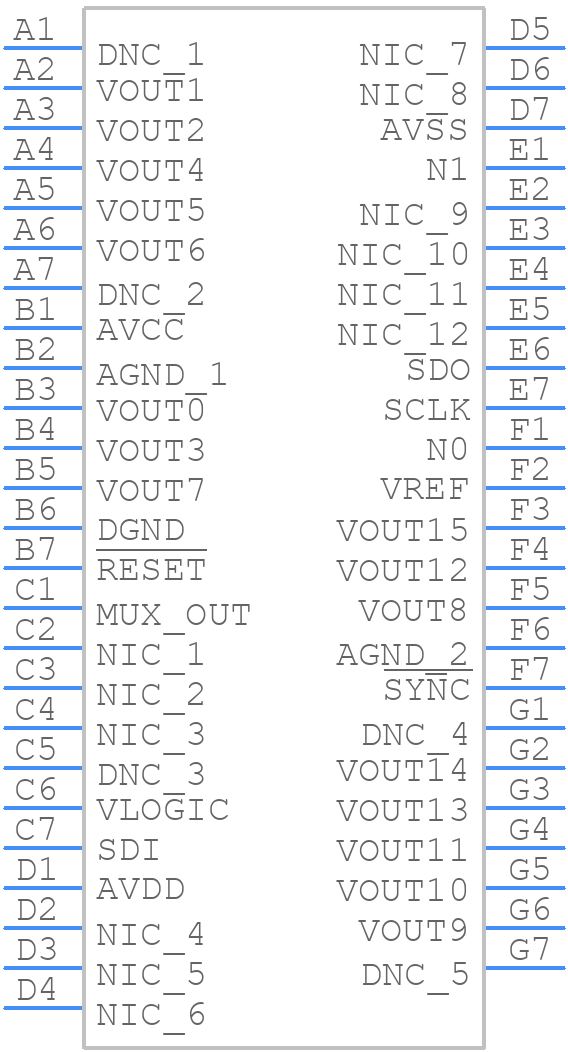

Symbol
AD5767BCBZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5767BCBZ-RL7 - Analog Devices PCB footprint - BGA - BGA - CB-49-4
click to zoom
3D Models
AD5767BCBZ-RL7 - Analog Devices - 3D model - BGA - CB-49-4
click to zoom

AD5767BCBZ-RL7 Details

  • Manufacturer Part Number:

    AD5767BCBZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-49

  • Pin Count:

    49

  • Manufacturer Package Code:

    CB-49-4

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-01-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PBGA-B49

  • JESD-609 Code:

    e1

  • Length:

    3.96 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    49

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.65 mm

  • Settling Time-Nom (tstl):

    10 µs

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    3.96 mm

AD5767BCBZ-RL7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence for the AD5767 is to power up the VDD supply first, followed by the AVDD supply, and then the DVDD supply. This ensures that the internal voltage regulators are powered up in the correct order.
  • To ensure accurate voltage output from the AD5767, it is recommended to use a high-quality external voltage reference, such as the ADR4520 or ADR4540, and to follow proper PCB layout and design guidelines to minimize noise and thermal effects.
  • The maximum output current capability of the AD5767 is 10 mA per channel. However, it is recommended to limit the output current to 5 mA per channel to ensure accurate voltage output and to prevent overheating.
  • The AD5767 has a built-in fault detection mechanism that can be used to detect output voltage errors, overtemperature conditions, and other faults. The fault detection mechanism can be implemented using the FAULT pin, which is an open-drain output that goes low in the event of a fault.
  • The recommended operating temperature range for the AD5767 is -40°C to +125°C. However, the device can operate at temperatures up to +150°C for short periods of time, such as during power-up or power-down sequences.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5767BCBZ-RL7 Overview

Use the download button to access the AD5767BCBZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD576, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
